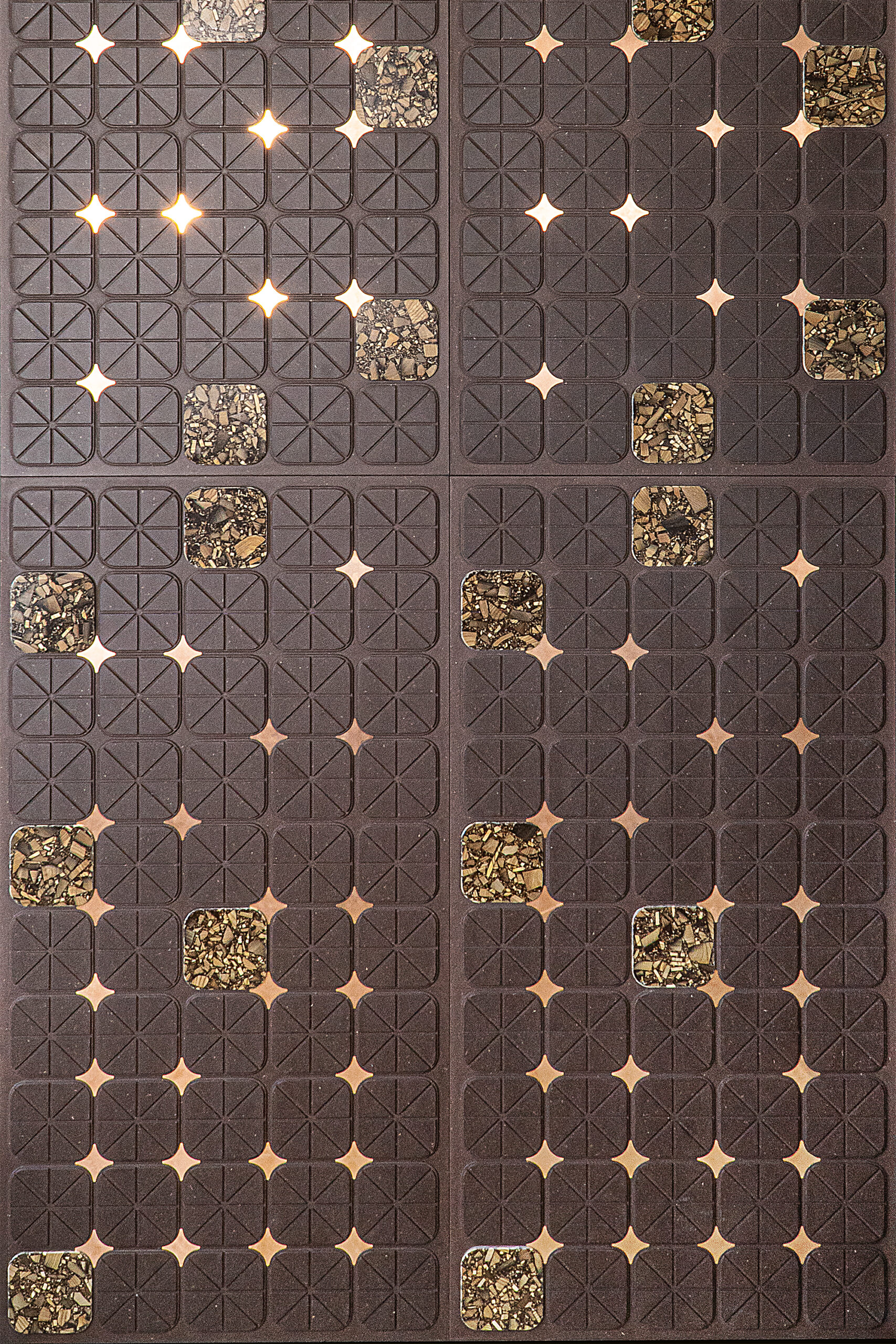

Chocolate is full of delightful, carefully designed details.

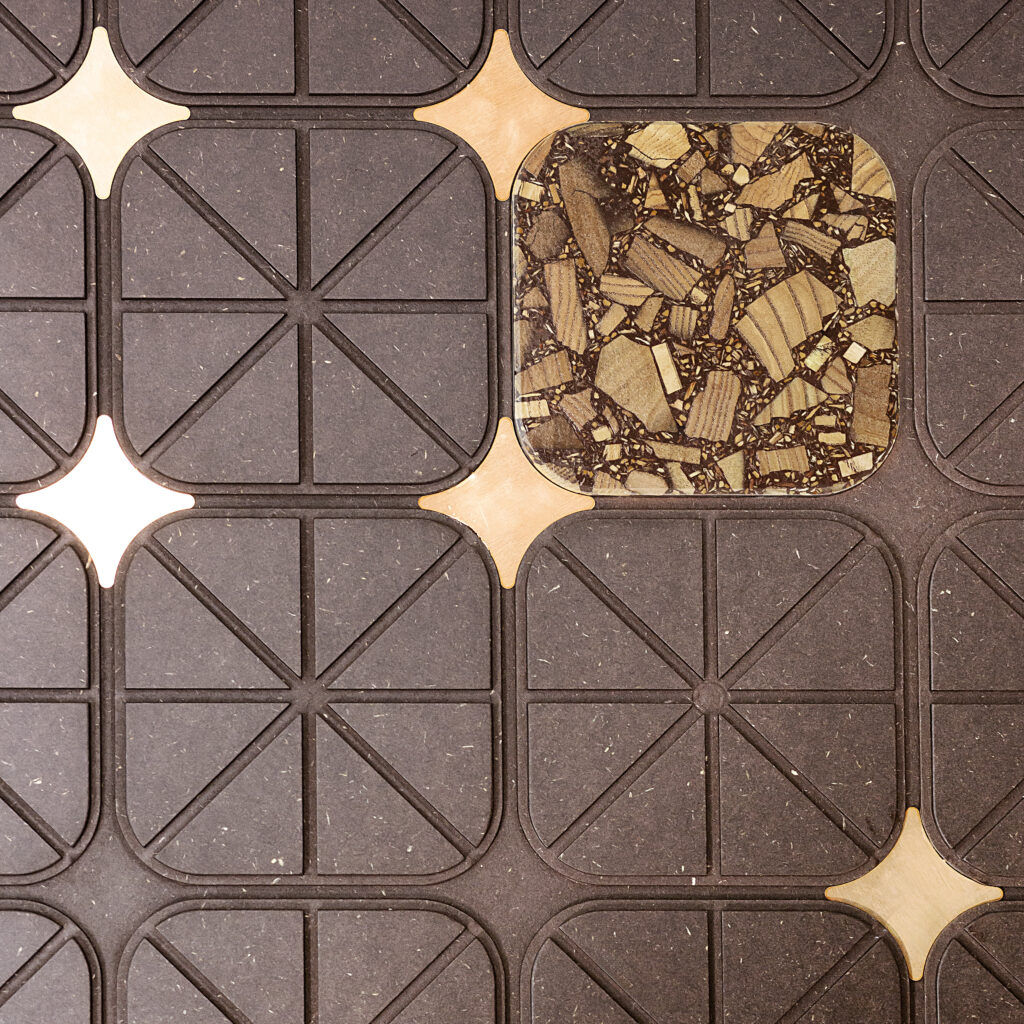

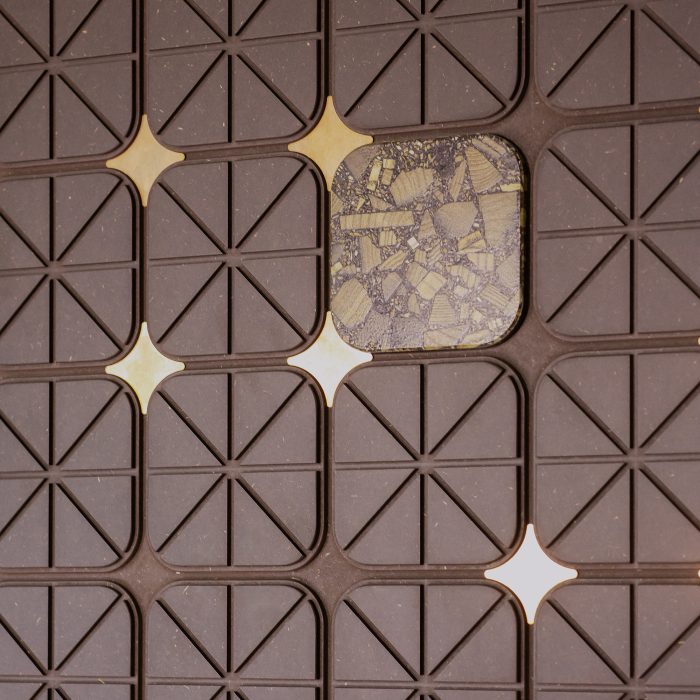

With sleek, hand-made ornaments of premium quality copper and inserts of sustainable board incorporating specks of walnut shells. This panel offers a blend of high technology and traditional craftsmanship.
The colour was obtained due to the incorporation of fine particles of Pinheiro-Bravo pine, growing exclusively in the Portuguese region of Leiria.

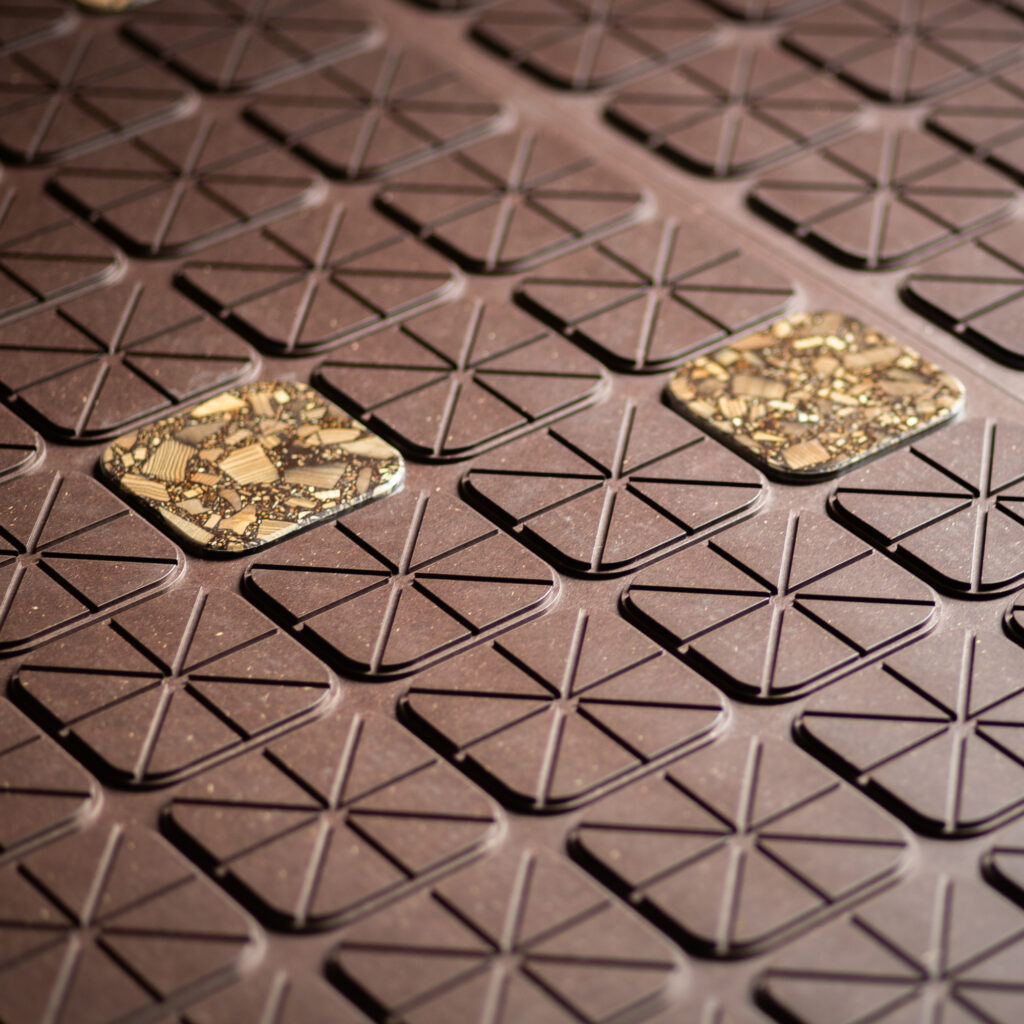

The panel resembles a bar of creamy
chocolate with nuts,
finely sprinkled with gold flakes.
TECHNICAL DATA

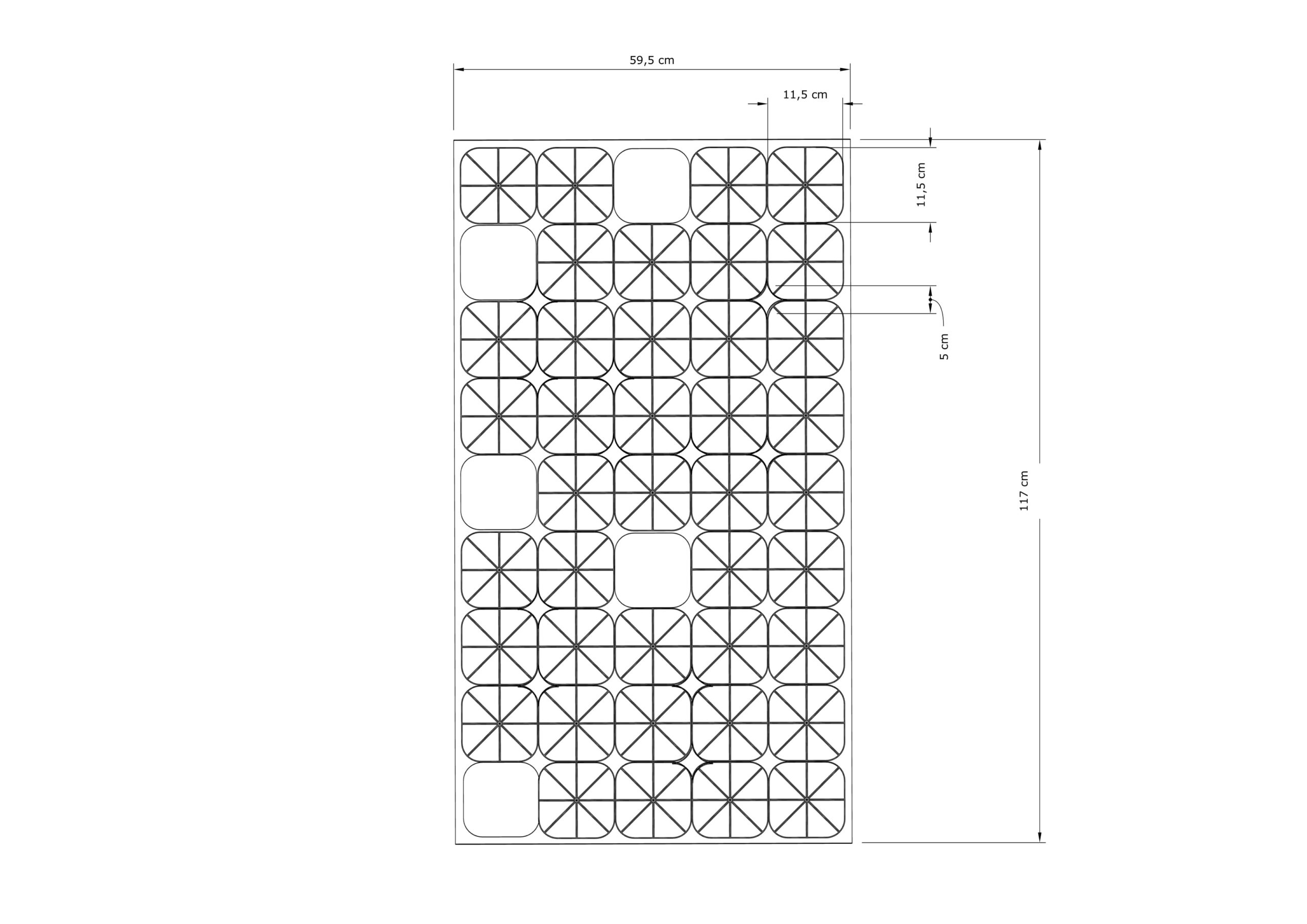

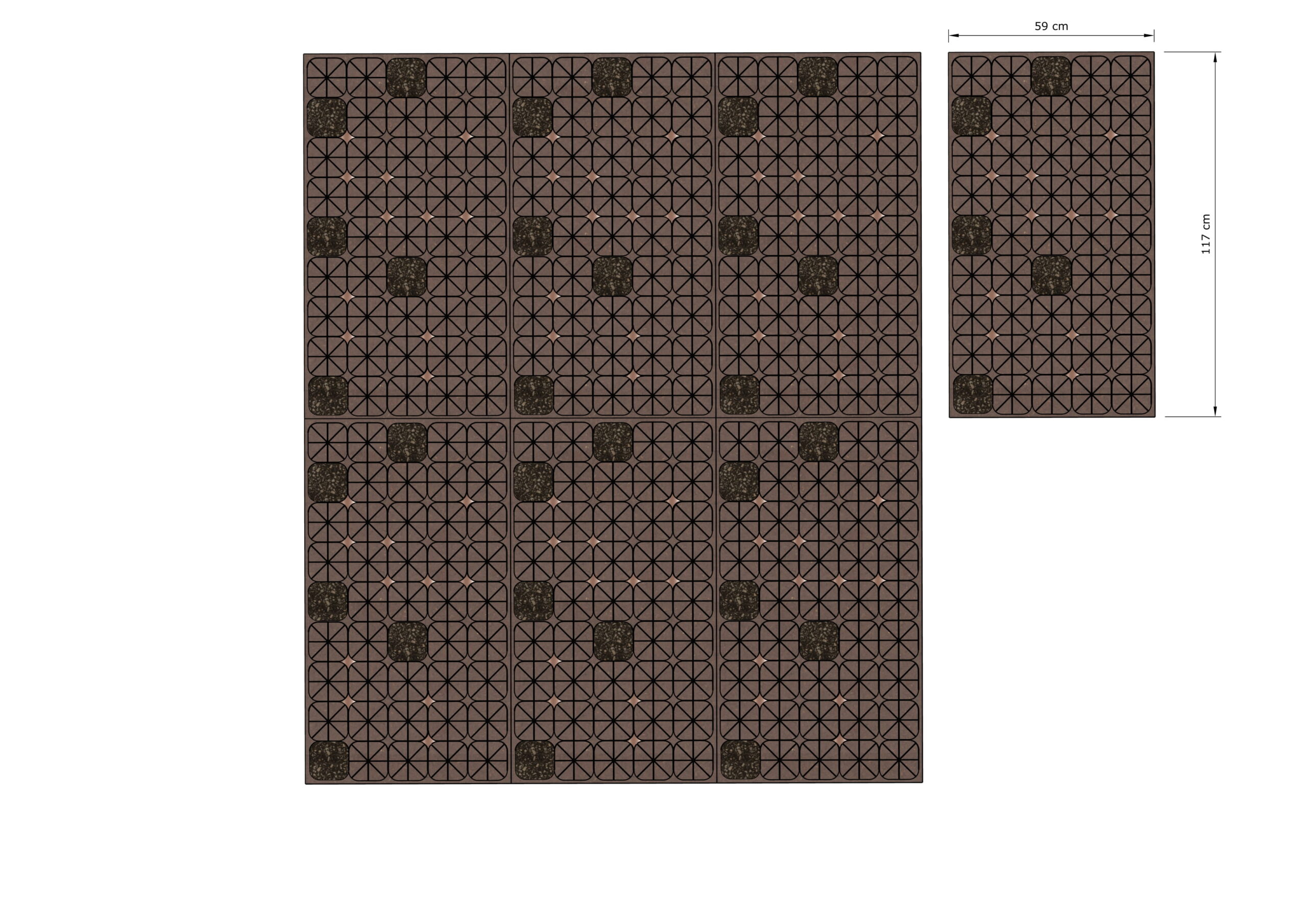

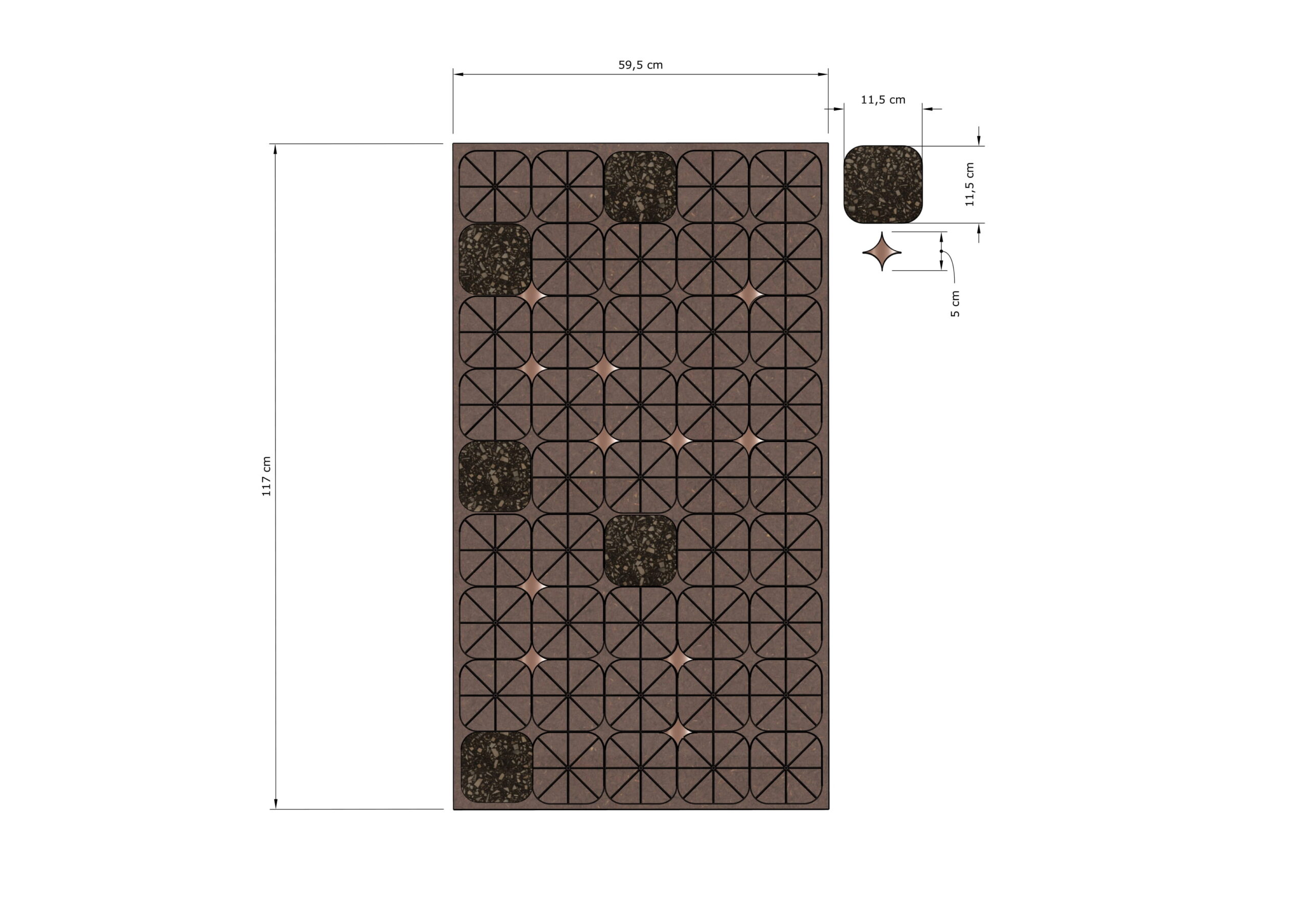

Dimensions
Height: 1171 mm
Thickness: 23 mm
Weight:
Width: 598,5 mm
Area: 0,70 m²
Dimensional tolerance in accordance with EN 622-5:2009 standard ±1 mm depending on the batch.
Material specification
Materials used

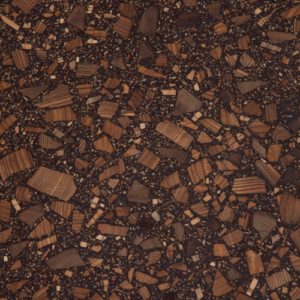

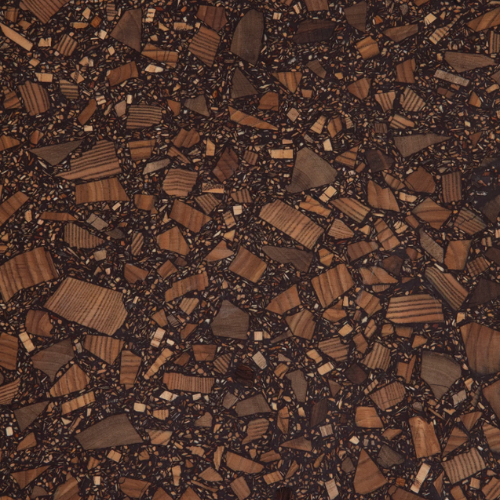

Valchromat board coloured through covered with satin varnish, with added fine particles of Pinheiro-Bravo maritime pine growing in the Portuguese region of Leiria, solid wood board, brass inserts, walnut shell
Product name
Chocolate
Sturdiness
Balancing the backside material prevents any deformations, ensuring panel sturdiness
Durability
30% harder and more resistant to mechanical damage than traditional panels
Our panels are environmentally friendly
Owing to the use of natural materials and reduced quantity of harmful chemicals, they can be safely used within the reach of children.
Installation guide
1. Determining the fixing line
- Using a cross line laser or spirit level, determine the horizontal fixing line 300 mm above the floor level (maintaining a compensation gap of 20 mm).
- Place the batten against the laser line – the perpendicular edge and elongated mounting holes (“bean holes”) enable accurate fitting to the level.
2. Preparing the batten for fitting
- Cut the excess batten length to size, in order to fit it to the wall end.
3. Fixing the batten to the wall
- Place the batten against the wall and draw points for Ø7 mounting holes. Apply Ø6/80 mm wall plugs (from 4 to 6 pcs) in the marked points.
- Elongated mounting holes (“bean holes”) enable adjustment of the batten in relation to the fixing line.
- If the wall is uneven, the fixing points should correspond to the points in which the batten contacts the wall – do not bend the batten.
4. Securing and completing the installation
- The process should be repeated for subsequent panels, attention being paid to any possibly uneven walls that may require additional fitting adjustments.
Due to available adjustment options and accurate fitting of the batten to the wall, installation is smooth and ensures the stability of the entire structure
