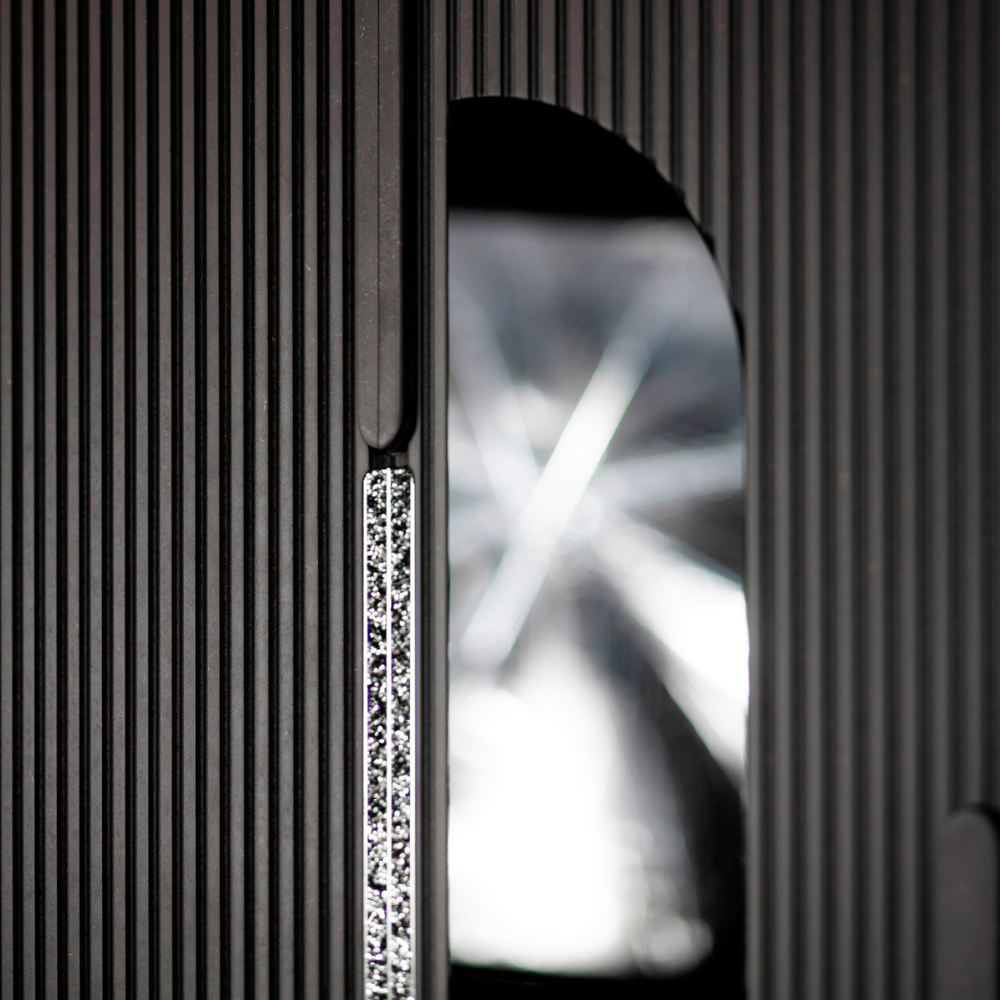

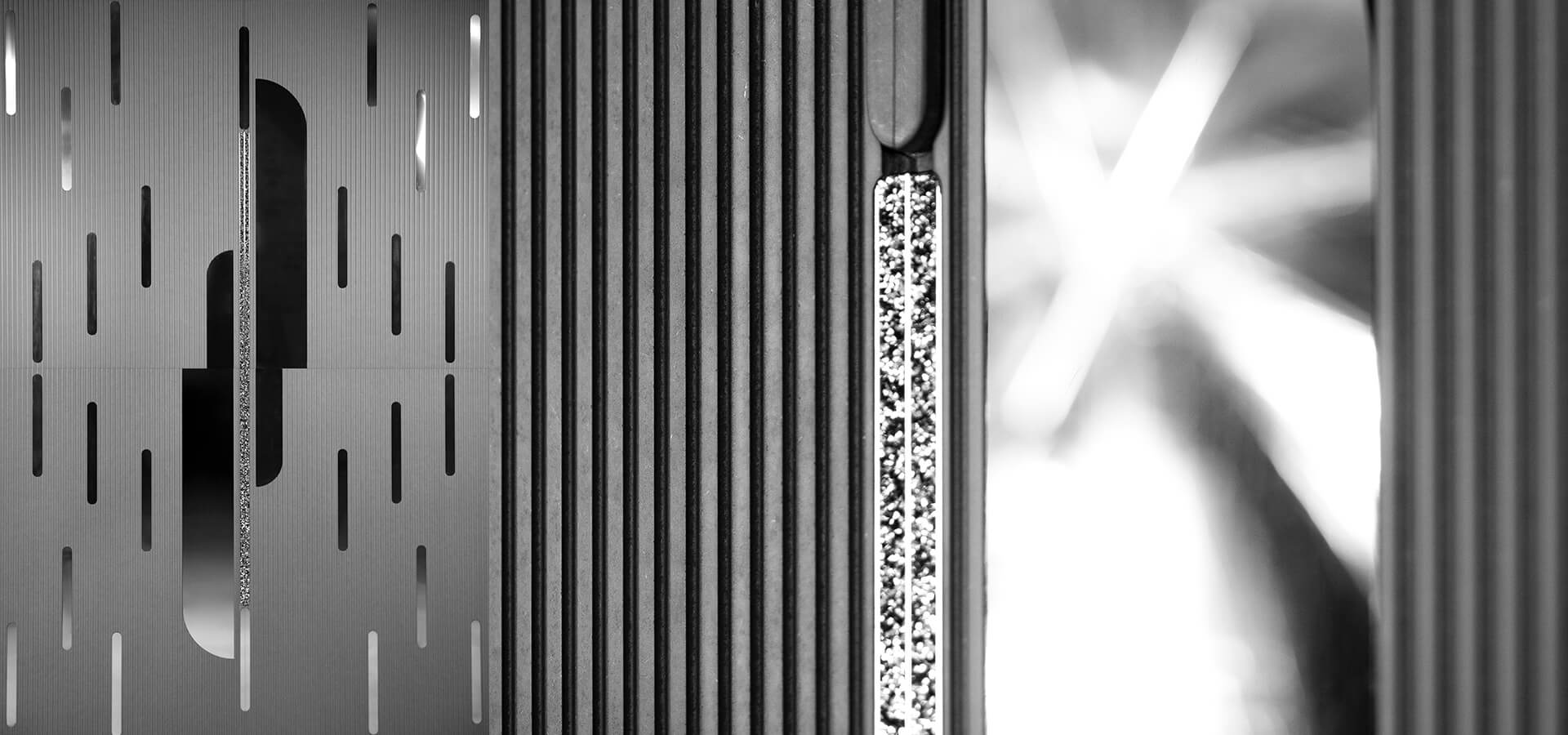

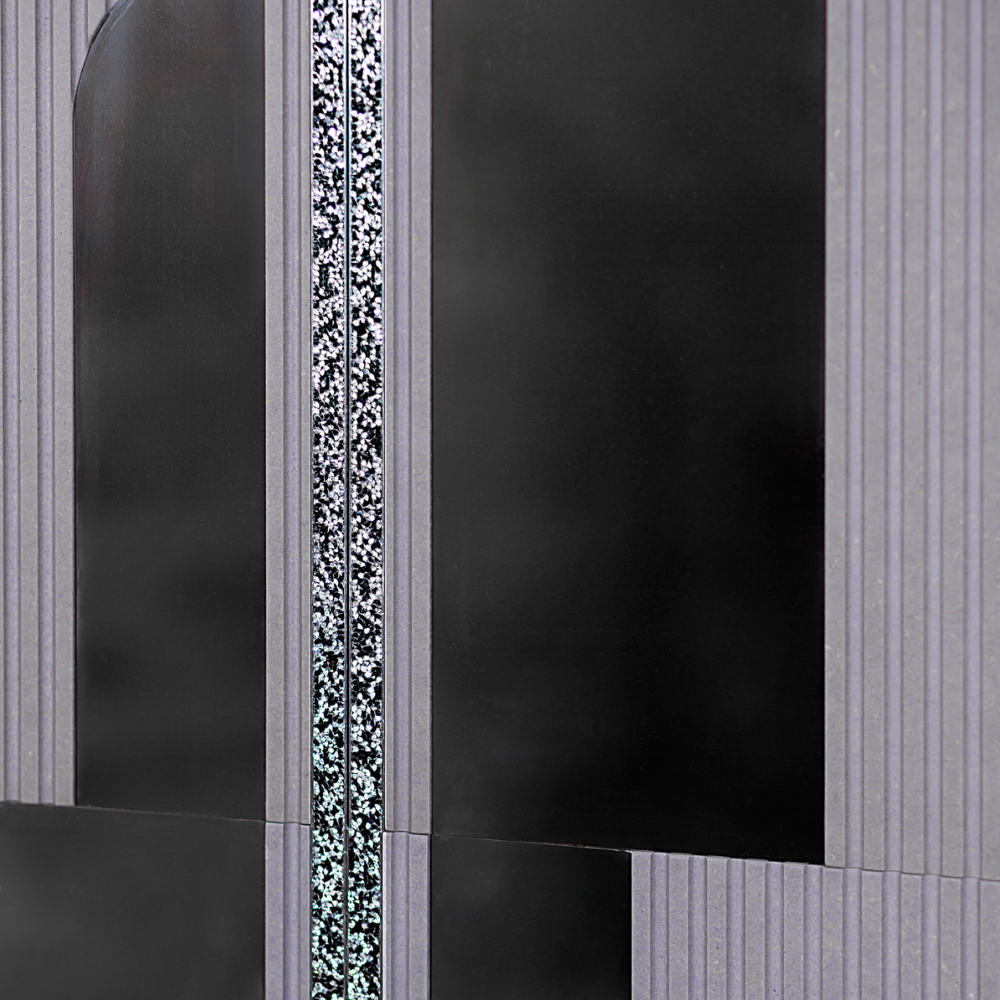

Ecstasy offers an upscale finish, stainless steel, mirror-like black and cut glass lamellas.
Raw wood micro-particles add an organic character, and accurately designed details make it equally well exposed as a single decoration, or as a repeatable motif across large walls.

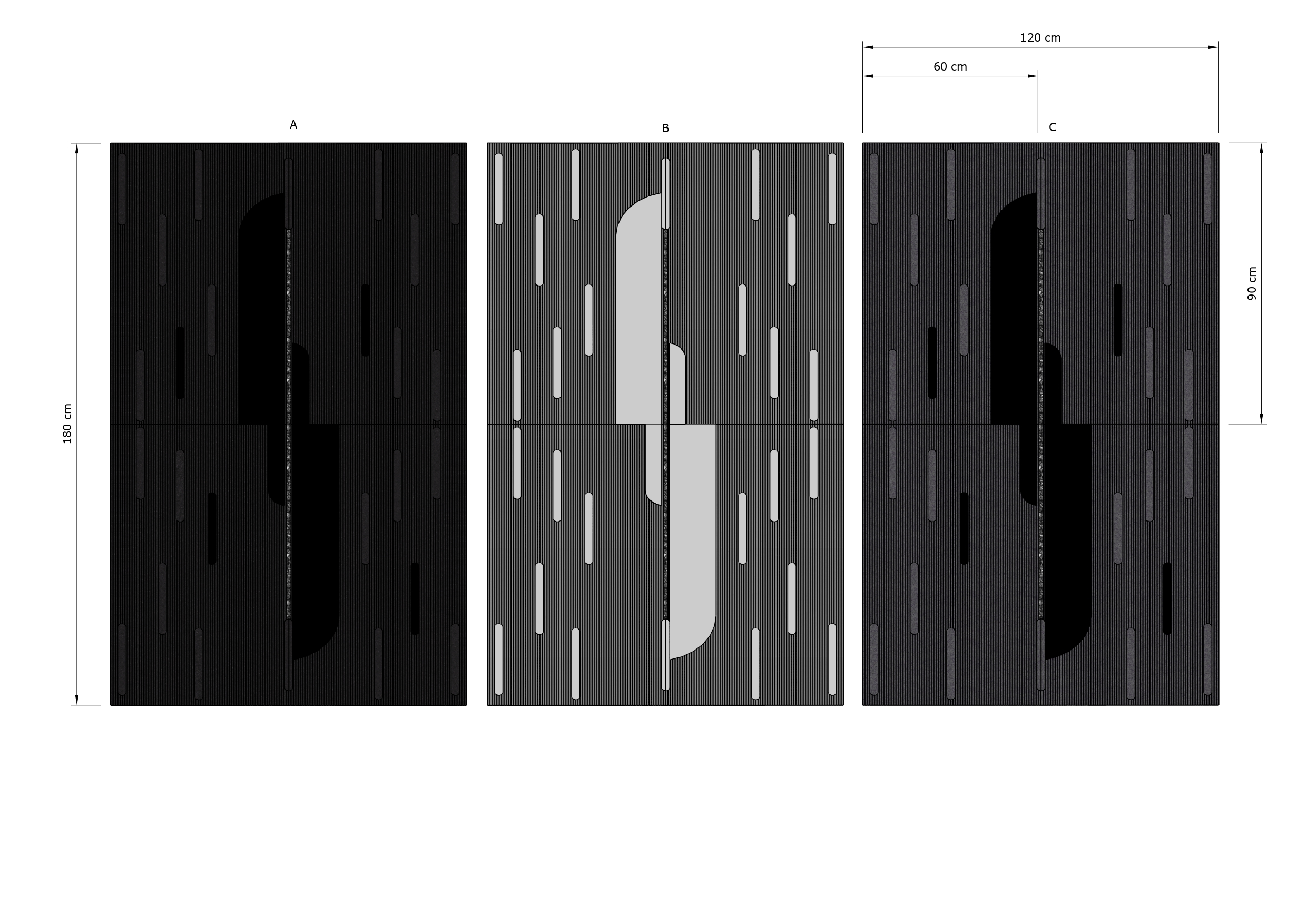

Ecstasy has been designed in three universal colours

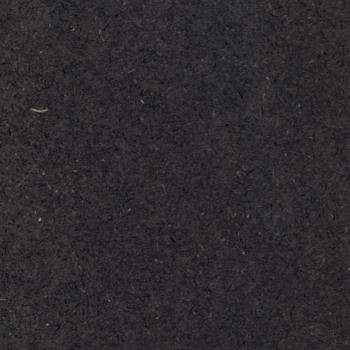

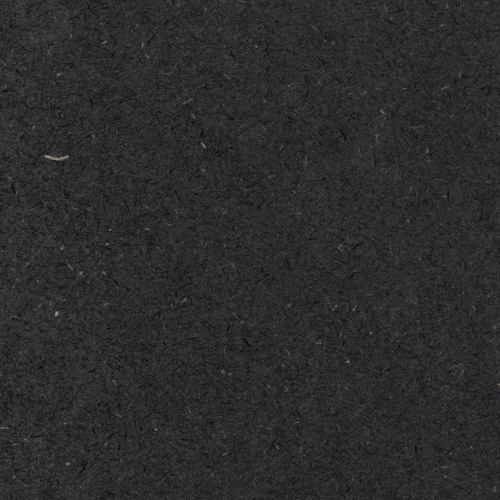

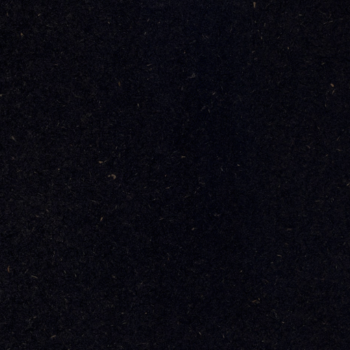

Dark – rich black, Graphite Grey, and Grey – light grey. Panel surface is covered with eco-friendly satin varnish, which underscores the natural texture of the material.

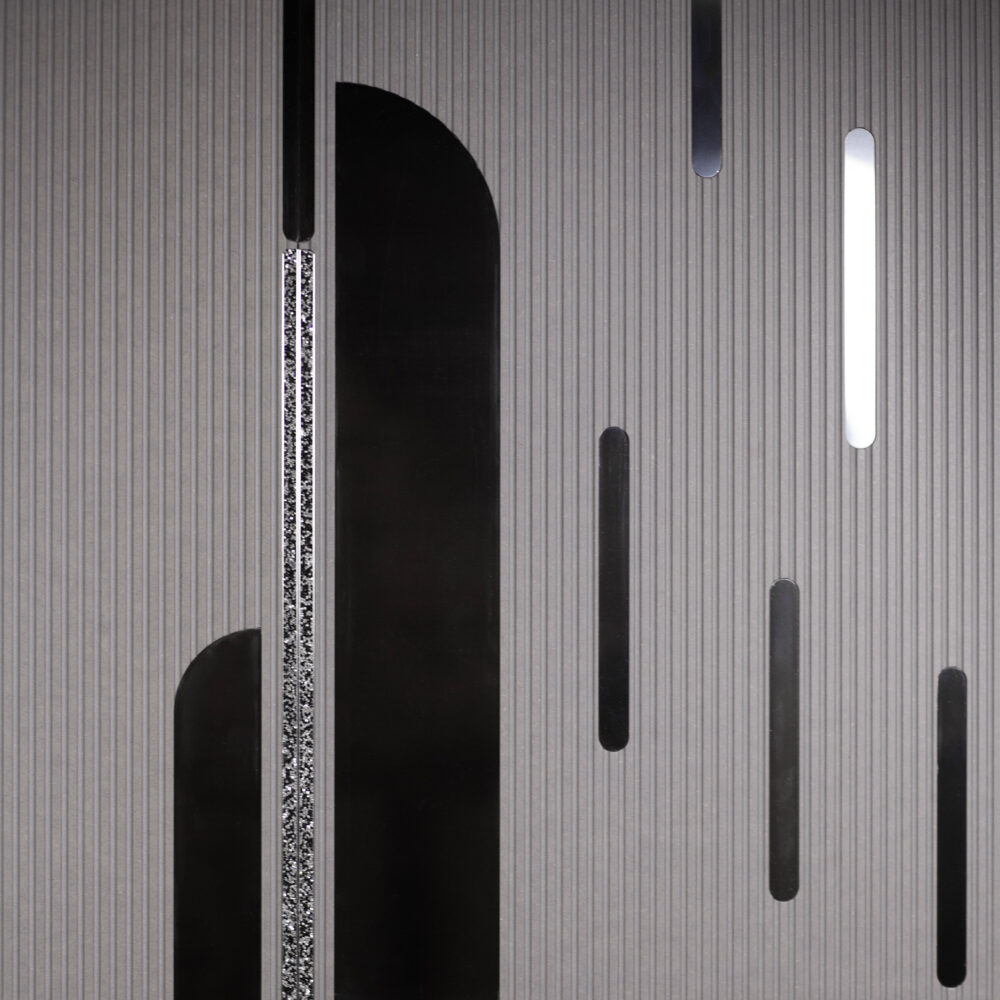

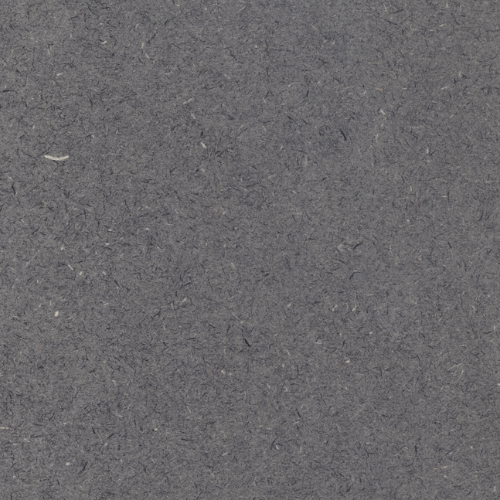

Grey version

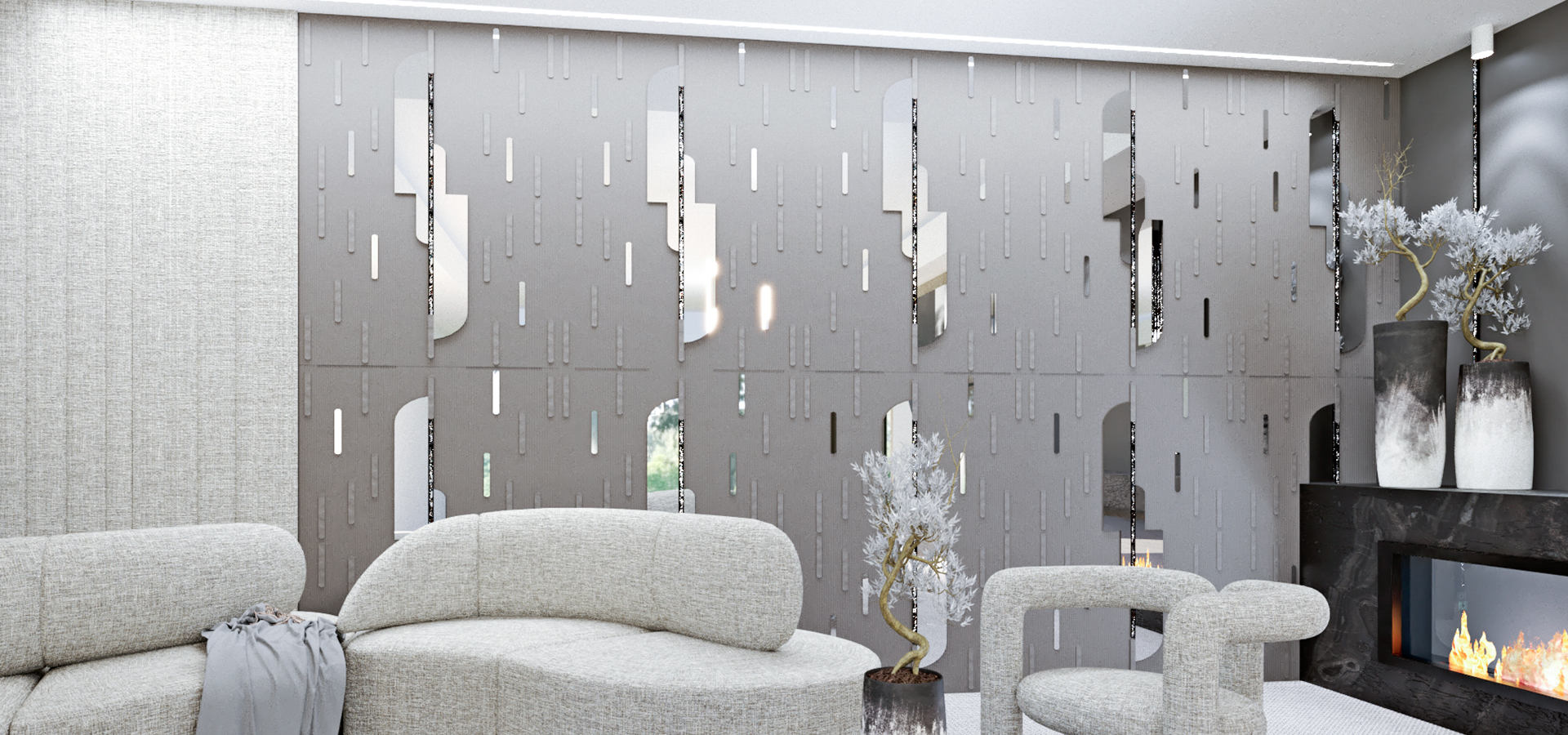

Harmoniously blends into luxurious
interiors, as well as austere industrial spaces.
TECHNICAL DATA

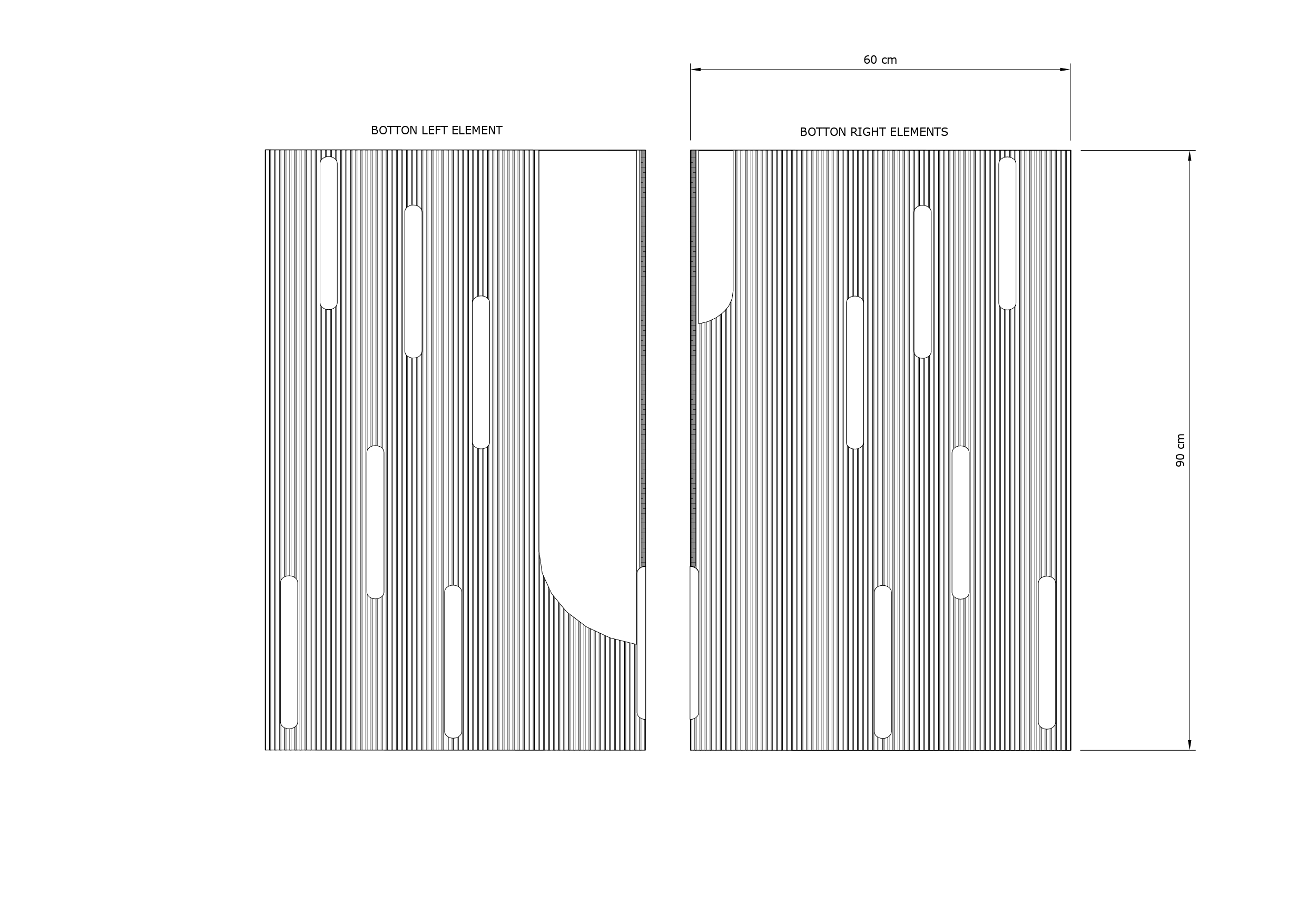

Dimensions
Height: 900 mm

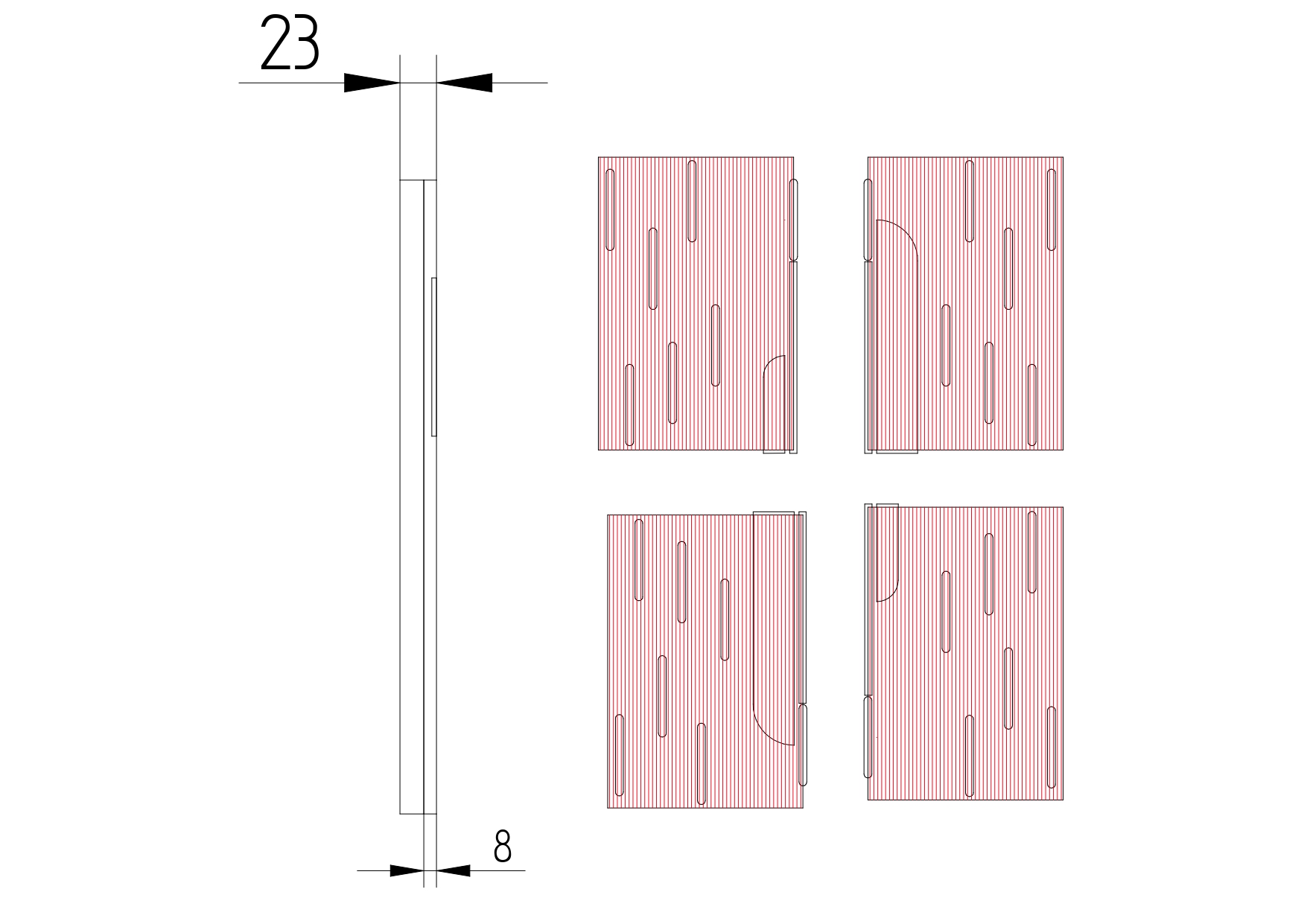

Thickness: 23 mm
Weight:
Width: 600 mm
Area: 0,54 m²
Dimensional tolerance in accordance with EN 622-5:2009 standard ±1 mm depending on the batch.
Material specification
Materials used

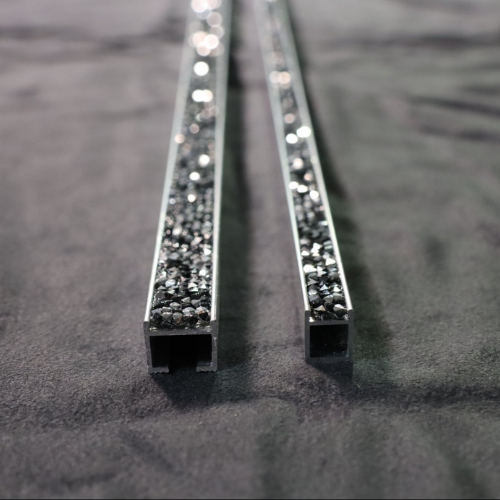

Valchromat board coloured through covered with satin varnish, solid wood board, profile filled in with cut glass particles

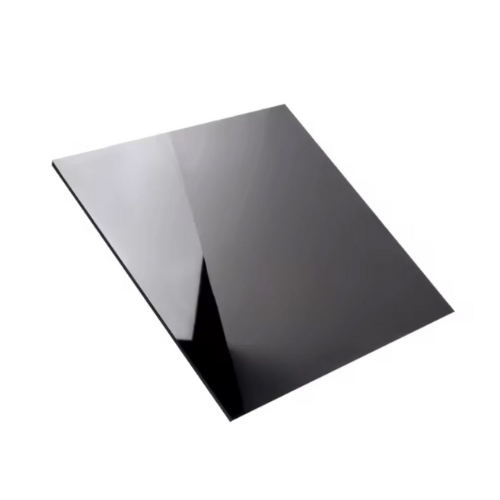

• black Lacobel float glass - Graphite and Dark versions

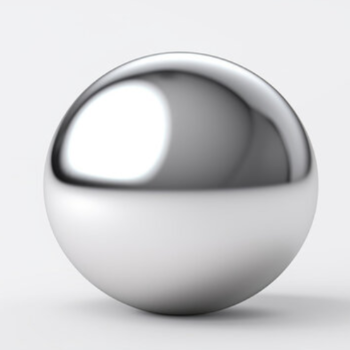

• mirror finish stainless steel - Dark Grey
Product name
• Ecstasy Graphite Grey
• Ecstasy Dark Grey

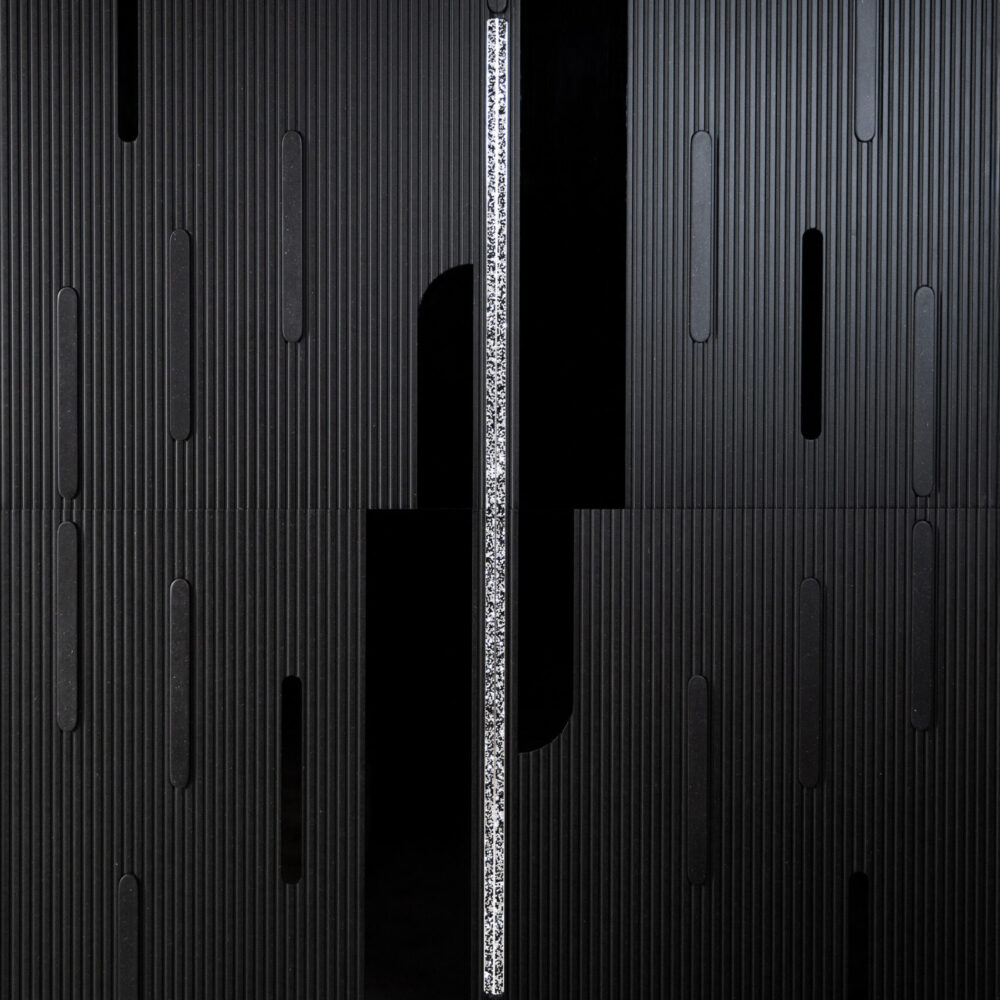

• Ecstasy Dark
Sturdiness
Balancing backside material prevents deformation, ensuring panel sturdiness
Durability
30% harder and more resistant to mechanical damage than traditional panels
Our panels are environmentally friendly
Owing to the use of natural materials and reduced quantity of harmful chemicals, they can be safely used within the reach of children.
Installation guide
1. Determining the fixing line
- Using a cross line laser or spirit level, determine the horizontal fixing line 300 mm above the floor level (maintaining a compensation gap of 20 mm).
- Place the batten against the laser line – the perpendicular edge and elongated mounting holes (“bean holes”) enable accurate fitting to the level.
2. Preparing the batten for fitting
- Cut the excess batten length to size, in order to fit it to the wall end.
3. Fixing the batten to the wall
- Place the batten against the wall and draw points for Ø7 mounting holes. Apply Ø6/80 mm wall plugs (from 4 to 6 pcs) in the marked points.
- Elongated mounting holes (“bean holes”) enable adjustment of the batten in relation to the fixing line.
- If the wall is uneven, the fixing points should correspond to the points in which the batten contacts the wall – do not bend the batten.
4. Securing and completing the installation
- The process should be repeated for subsequent panels, attention being paid to any possibly uneven walls that may require additional fitting adjustments.
Due to available adjustment options and accurate fitting of the batten to the wall, installation is smooth and ensures the stability of the entire structure
