Contrasting colours and textures

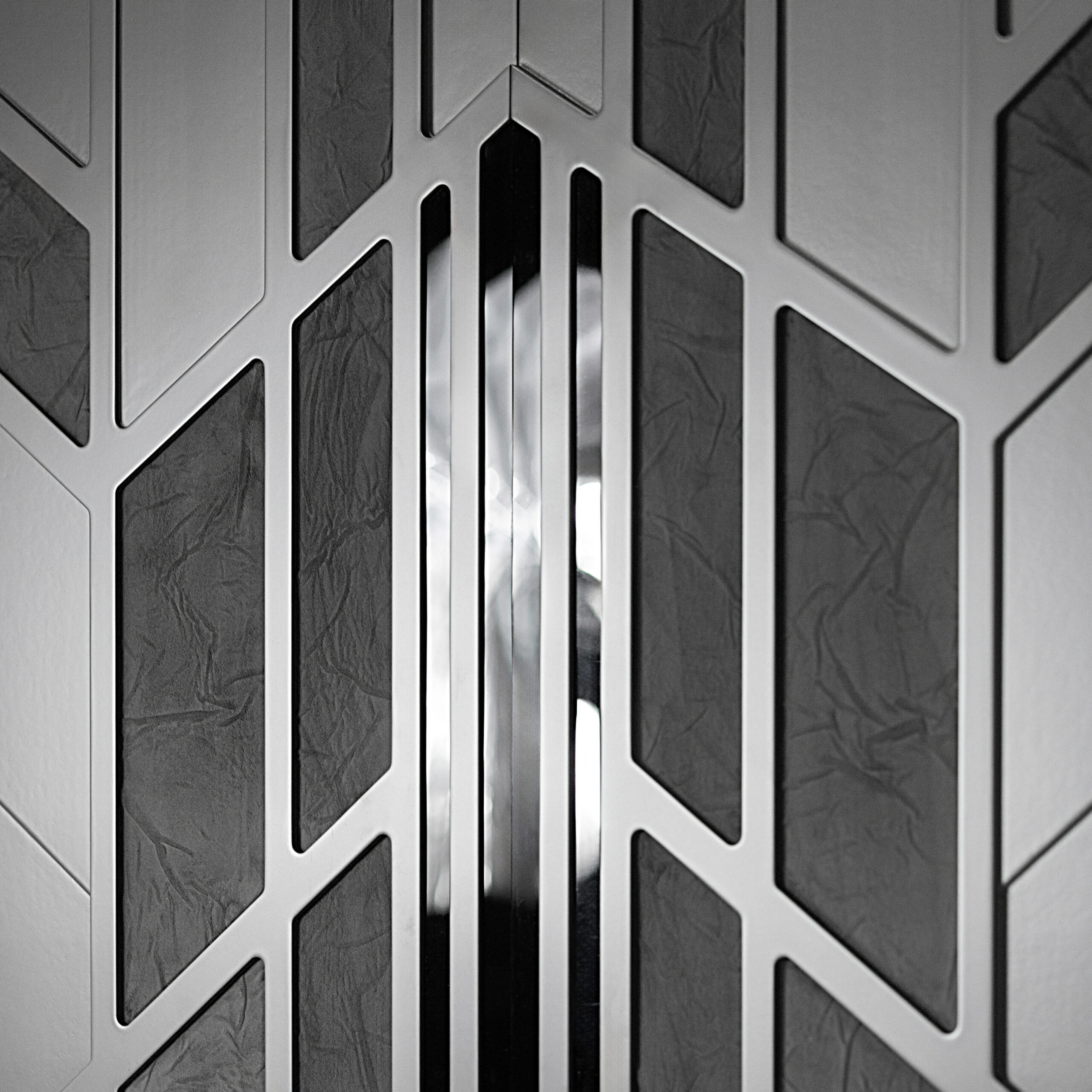

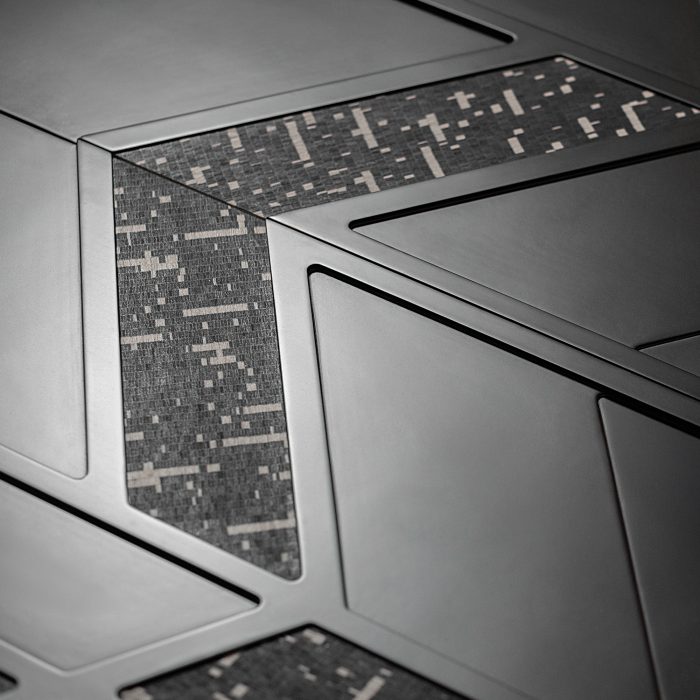

Dark grey deep matt combined with gently shimmering black details and a beautiful veneered mosaic of geometric shapes, resembling constellations of the night sky.

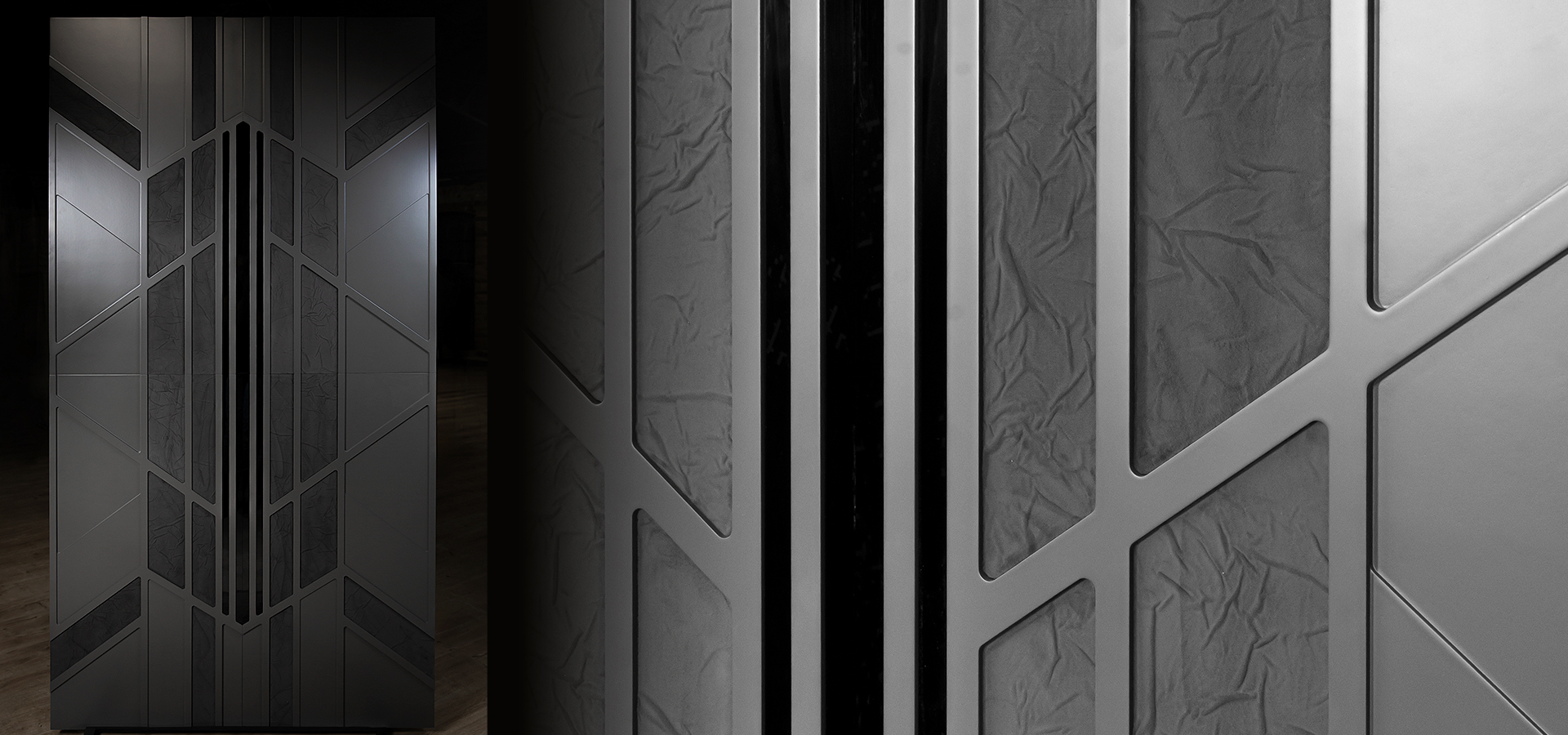

Shade comes in two versions, Velvet and Dark, both in dark tones.

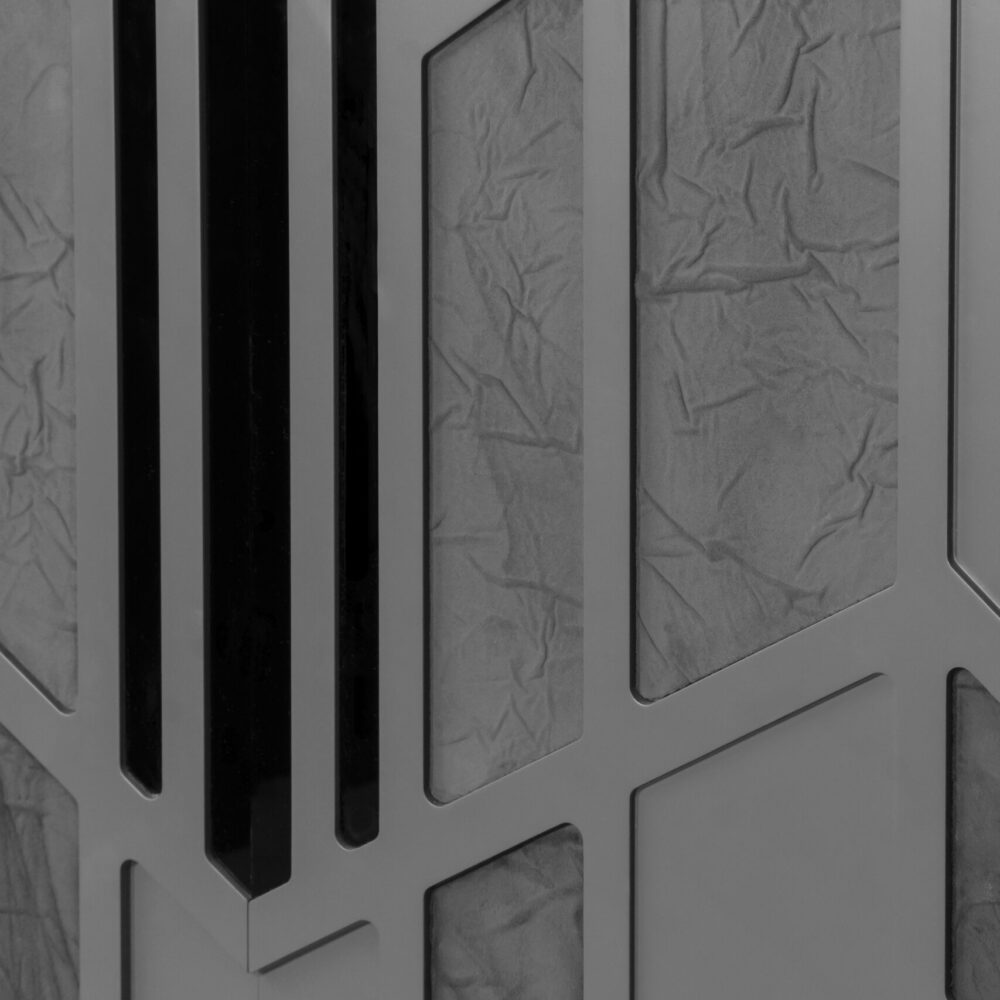

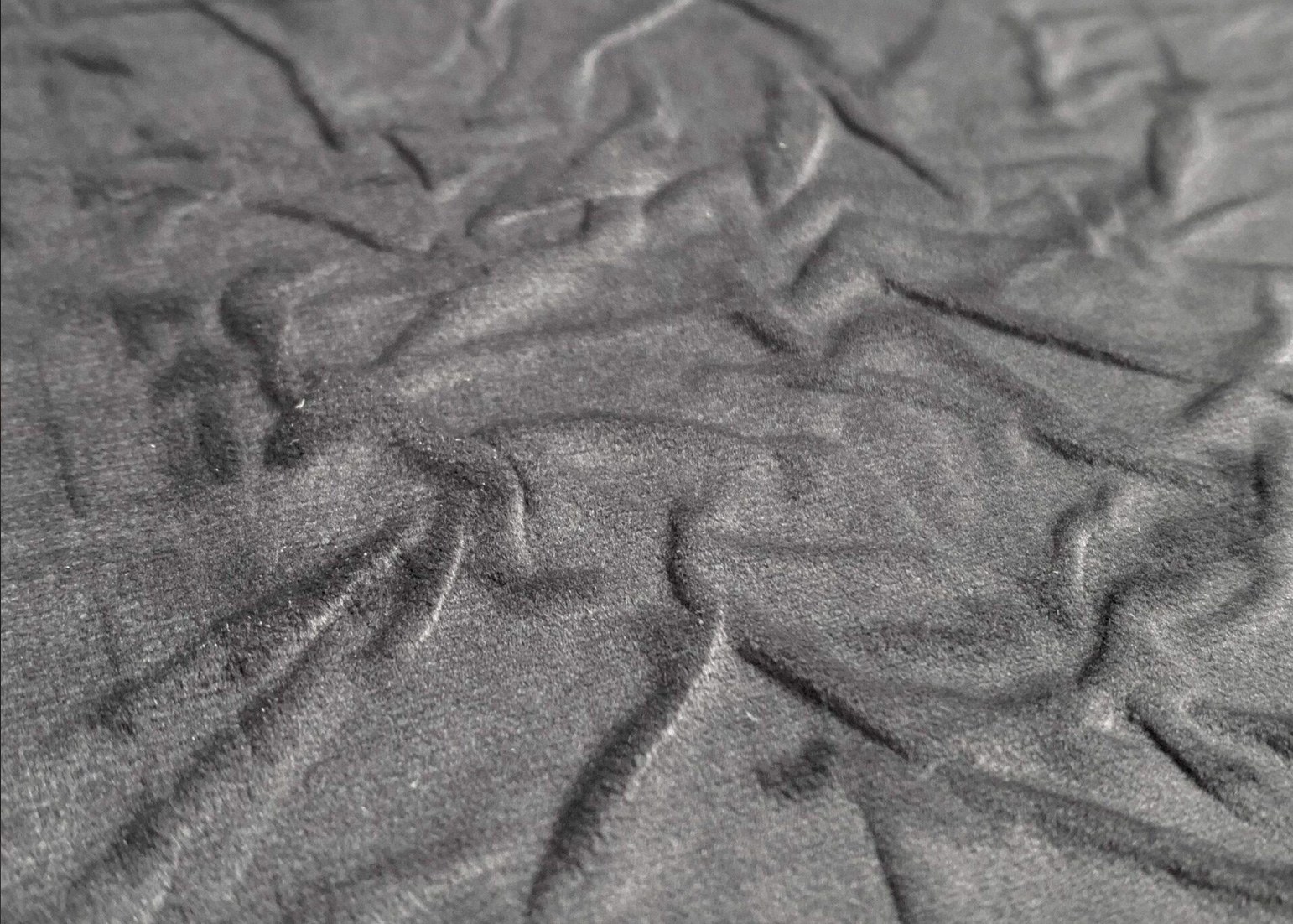

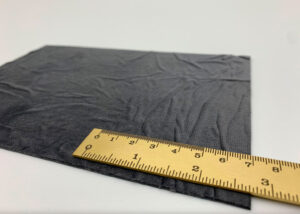

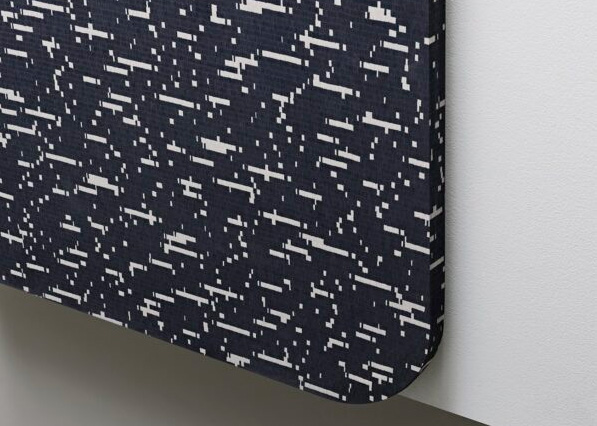

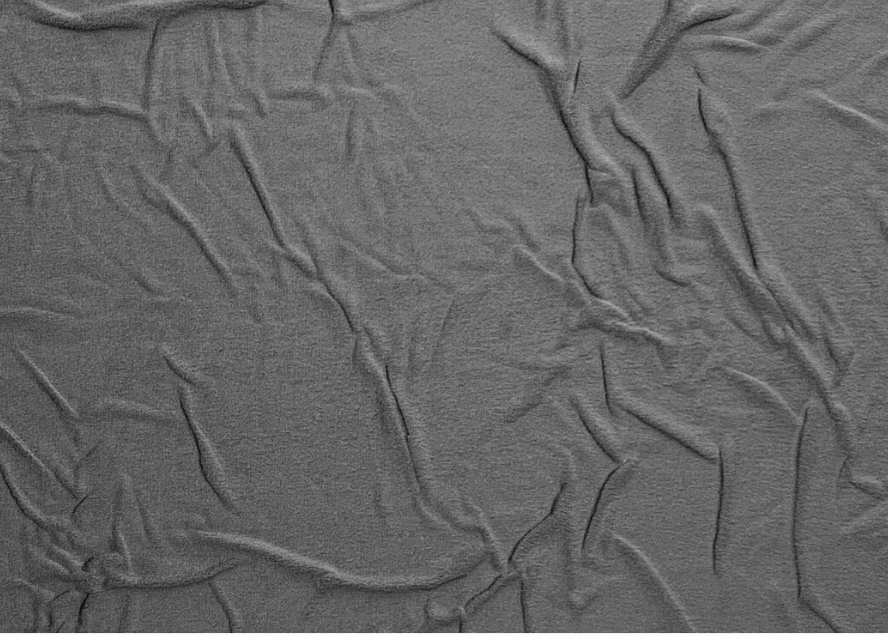

Both patterns are enriched with black Lacobel float glass. In addition, concave geometrical forms in the Velvet panel are lined with velvety Sibu board, whereas the Dark panel features a modified black-and-white veneer.
SHADE DARK NCS S 8500-N
SHADE VELVET NCS S 7000-N

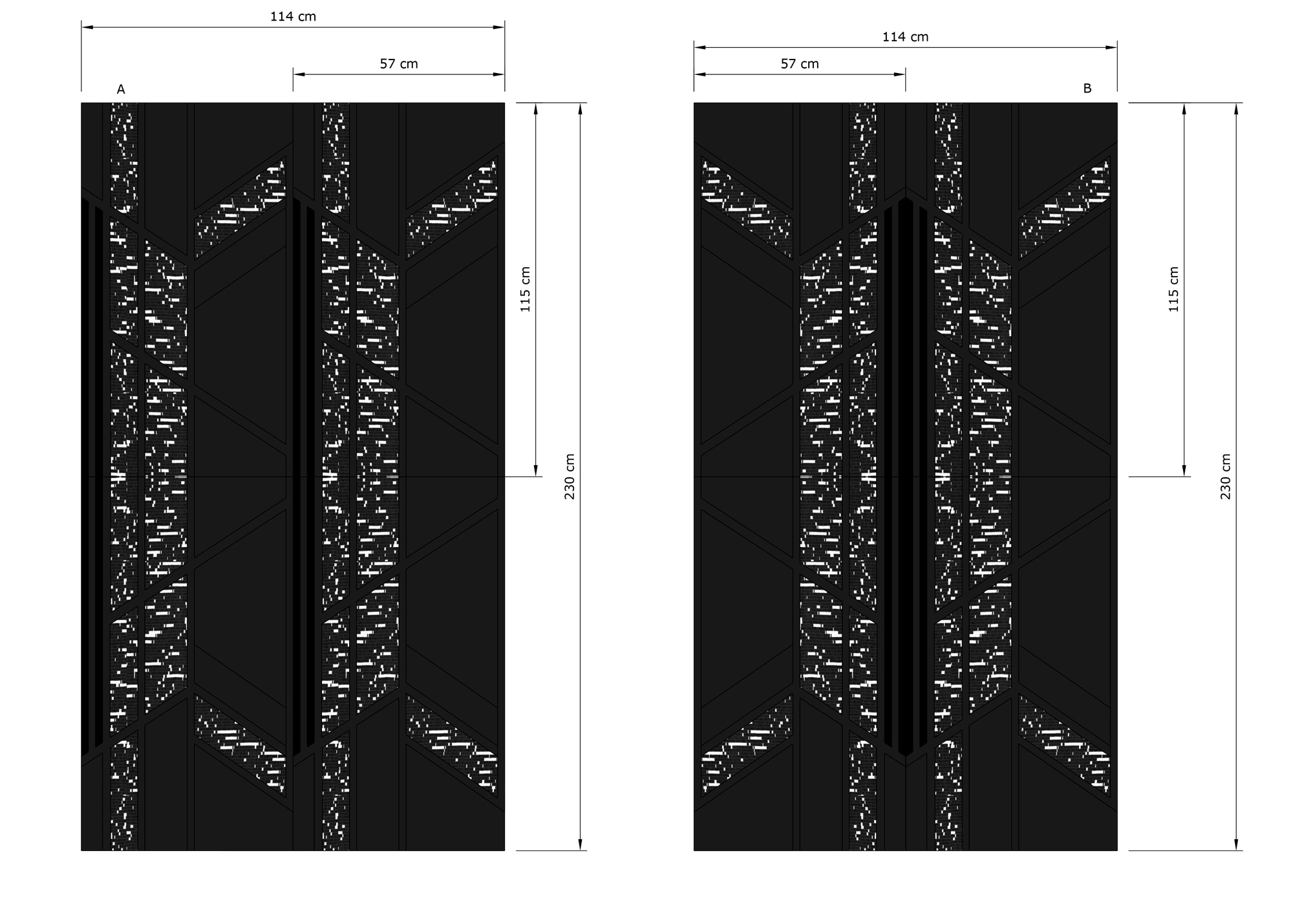

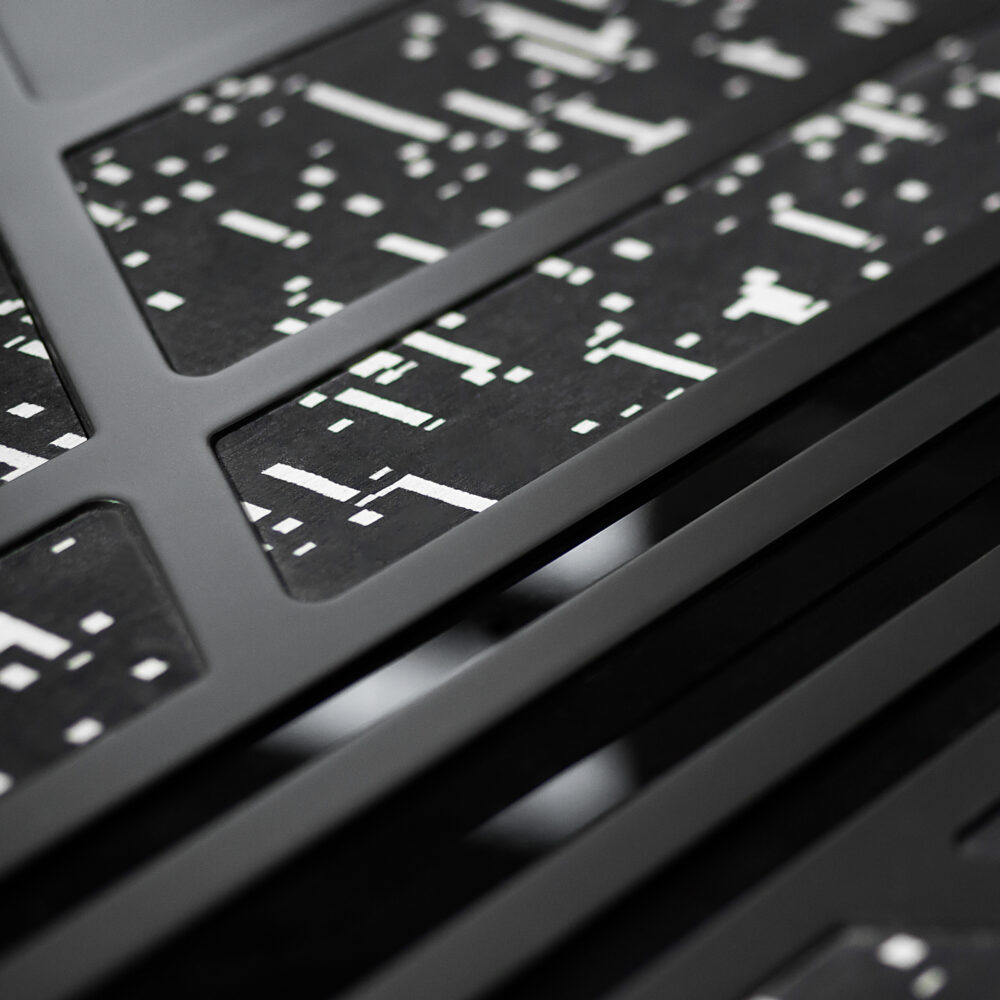

Dark version
Dark colour tones, satin filter and hand-made
wood veneer all intertwine to
provide a strong geometric form.
TECHNICAL DATA
Dimensions
Height: 150 mm
Thickness: 27 mm
Weight:
Width: 570 mm
Area: 0,0855 m²
Dimensional tolerance in accordance with EN 622-5:2009 standard ±1 mm depending on the batch.
Material specification
Materials used
Valchromat board coloured through covered with satin varnish, solid wood board, black Lacobel float glass
Product name
• Shade Velvet
• Shade Dark
Sturdiness
Balancing backside material prevents deformation, ensuring panel sturdiness
Durability
30% harder and more resistant to mechanical damage than traditional panels
Our panels are environmentally friendly
Owing to the use of natural materials and reduced quantity of harmful chemicals, they can be safely used within the reach of children.
Installation guide
1. Determining the fixing line
- Using a cross line laser or spirit level, determine the horizontal fixing line 300 mm above the floor level (maintaining a compensation gap of 20 mm).
- Place the batten against the laser line – the perpendicular edge and elongated mounting holes (“bean holes”) enable accurate fitting to the level.
2. Preparing the batten for fitting
- Cut the excess batten length to size, in order to fit it to the wall end.
3. Fixing the batten to the wall
- Place the batten against the wall and draw points for Ø7 mounting holes. Apply Ø6/80 mm wall plugs (from 4 to 6 pcs) in the marked points.
- Elongated mounting holes (“bean holes”) enable adjustment of the batten in relation to the fixing line.
- If the wall is uneven, the fixing points should correspond to the points in which the batten contacts the wall – do not bend the batten.
4. Securing and completing the installation
- The process should be repeated for subsequent panels, attention being paid to any possibly uneven walls that may require additional fitting adjustments.
Due to available adjustment options and accurate fitting of the batten to the wall, installation is smooth and ensures the stability of the entire structure
