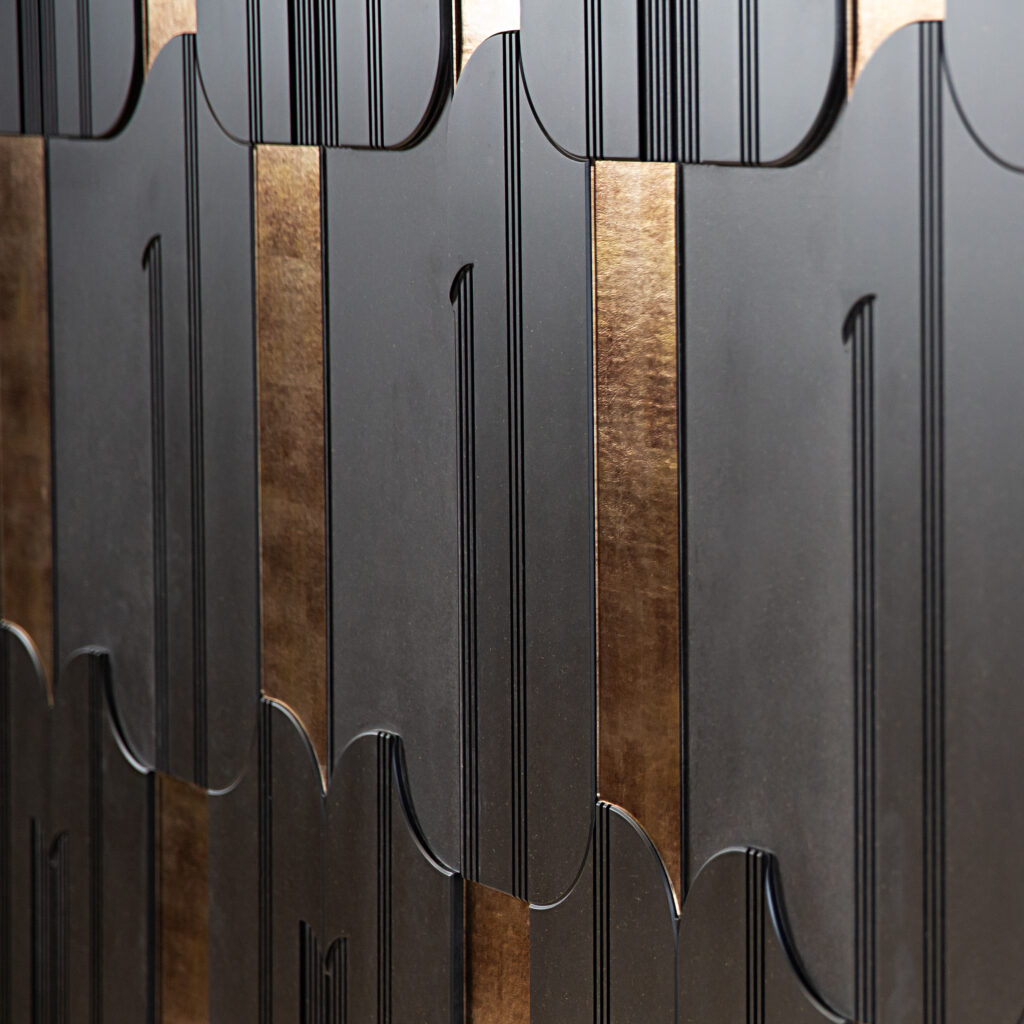

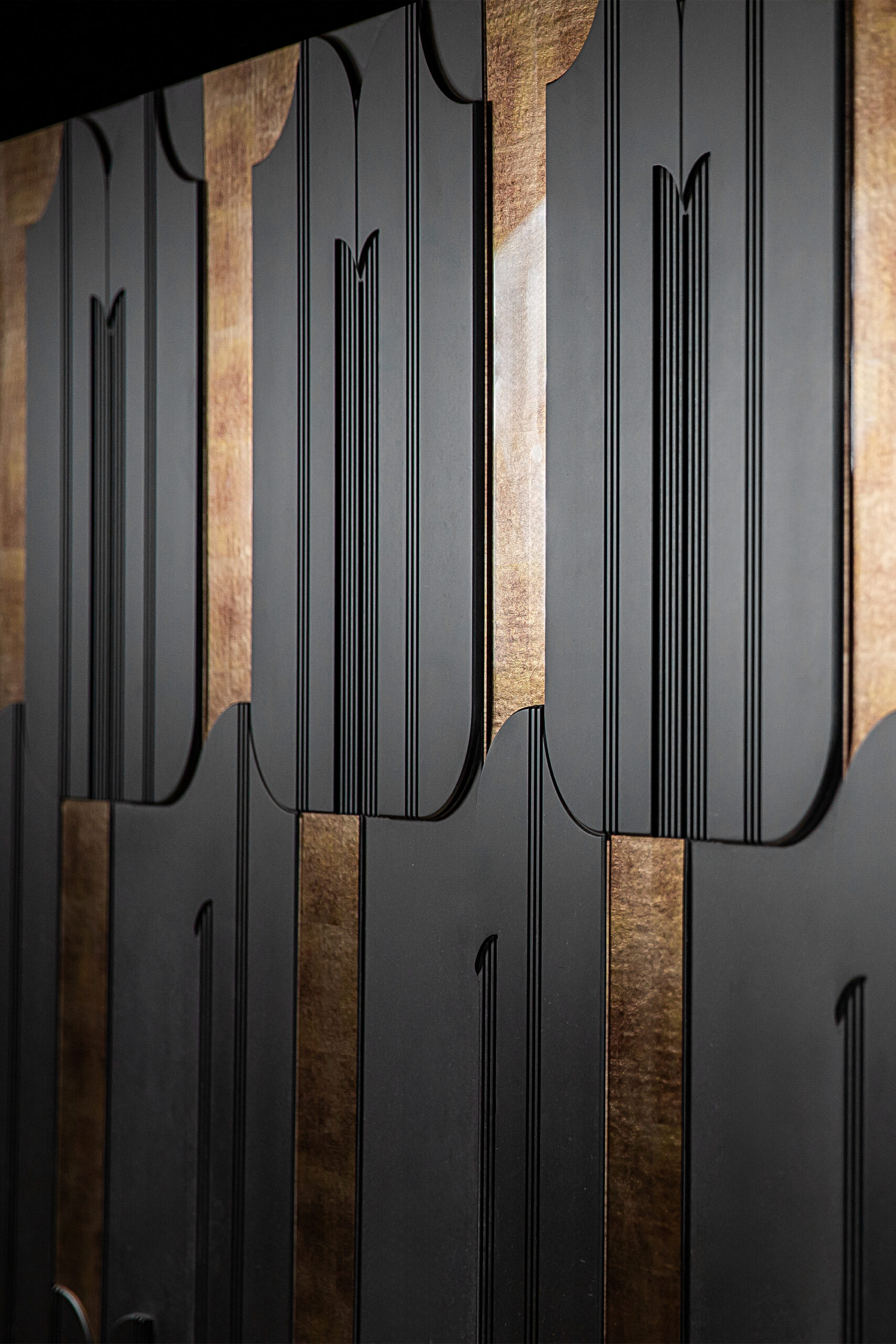

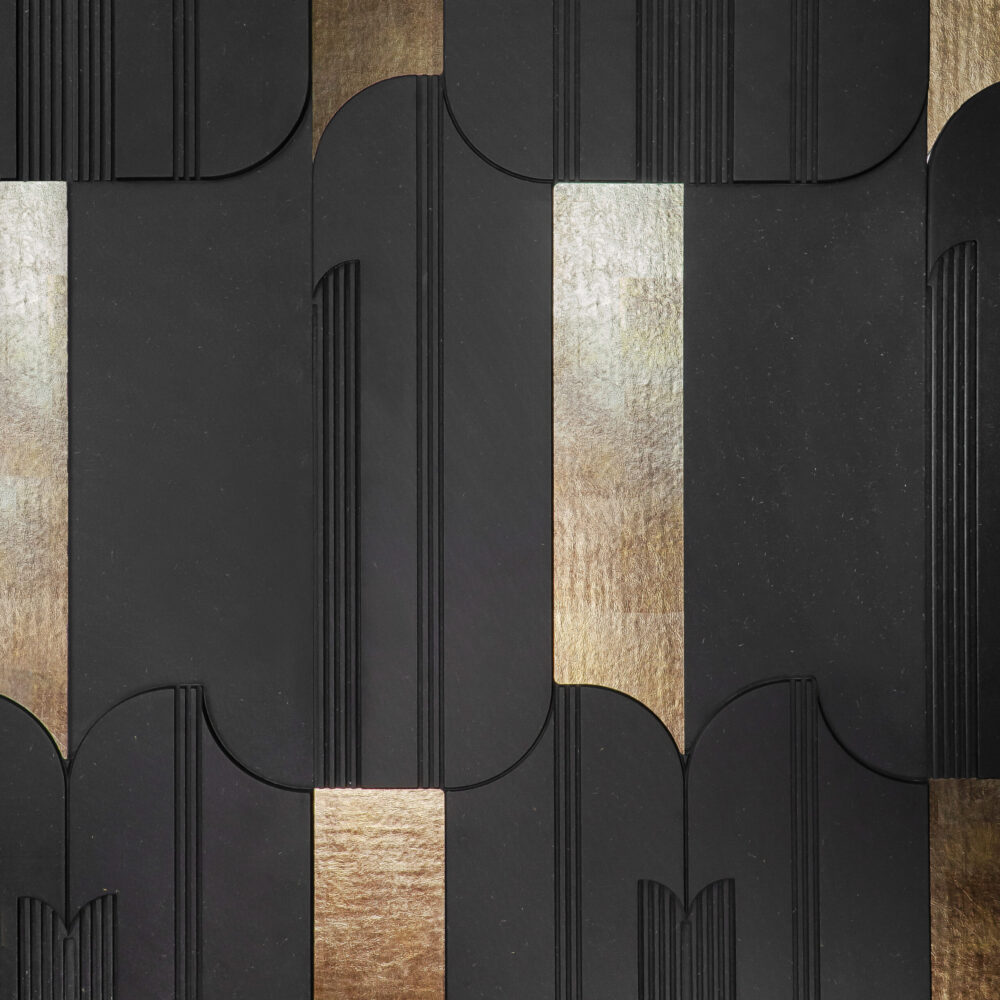

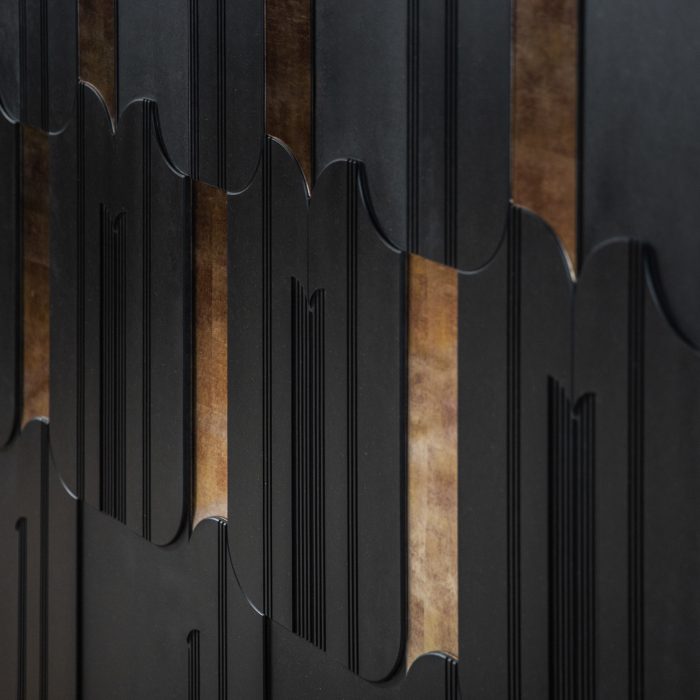

Wave panel was obtained using low mould technique, its surfaces additionally having undulating edges due to hand finish.

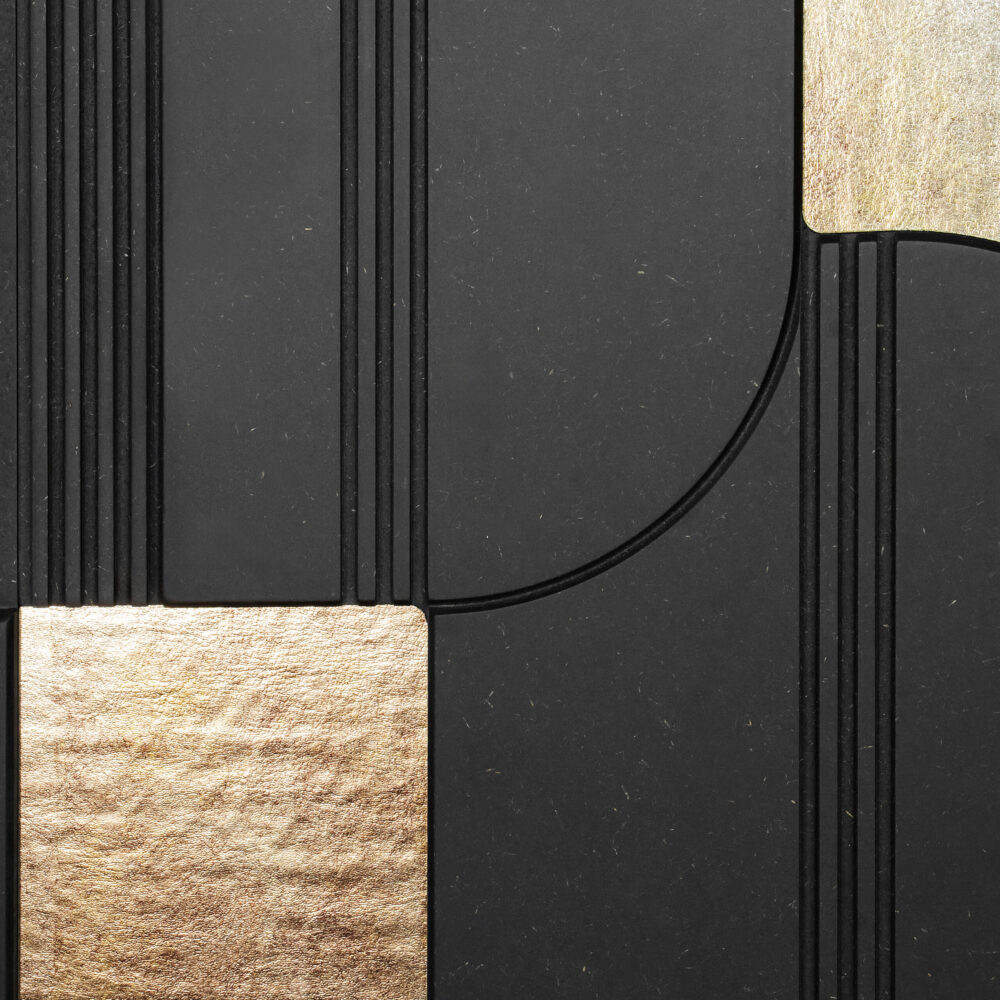

The contrasting black MDF coloured through, with large golden elements incorporating gold leaf and Sibuglas. Three thin layers of colourless varnish lends the surface a satin film.

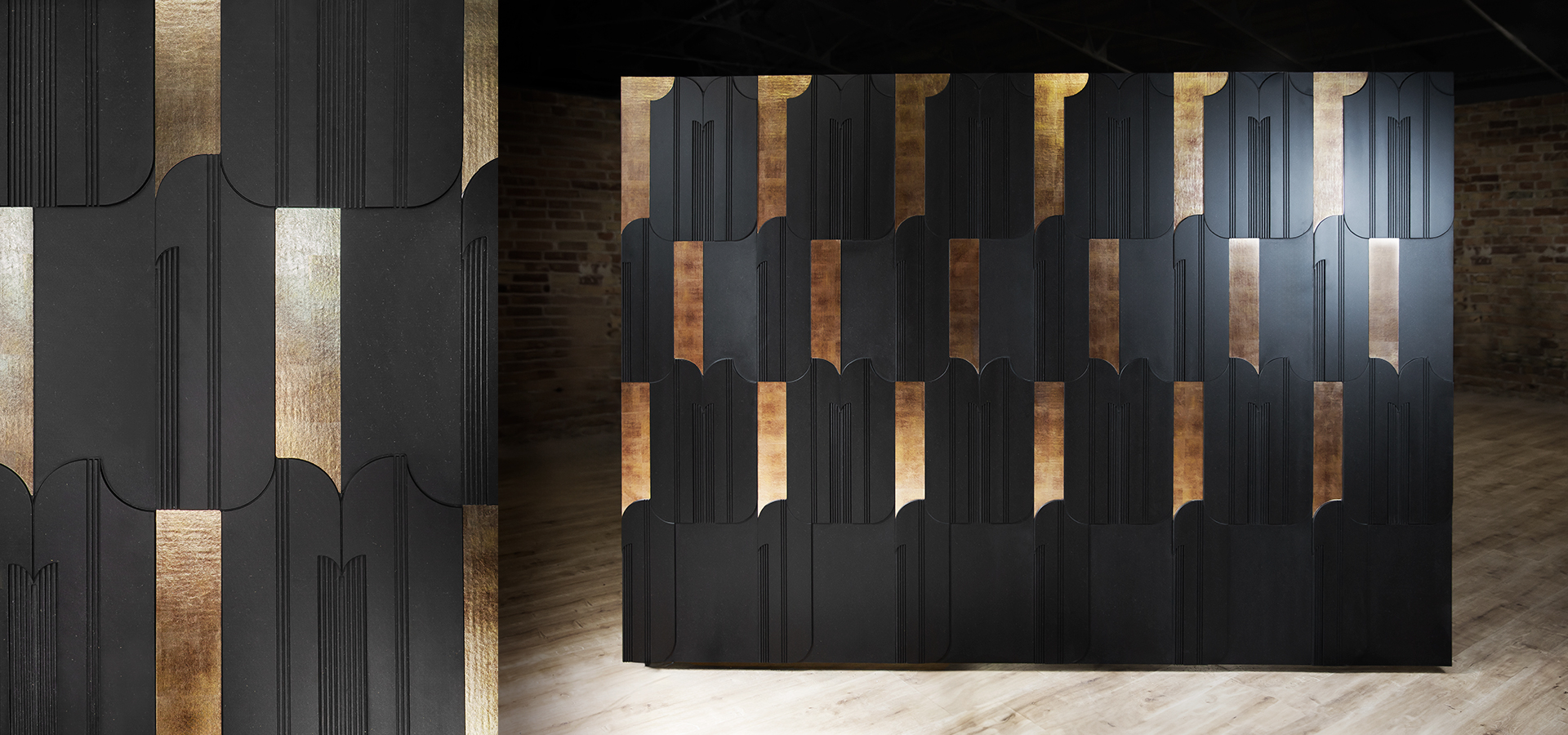

It provides a wall pattern of interlaced golden, slightly mellowed areas and coarse black background giving the impression of the waves.
The panel will blend harmoniously
into sleek interiors, such as a lobby
of a luxurious hotel or restaurant.
TECHNICAL DATA

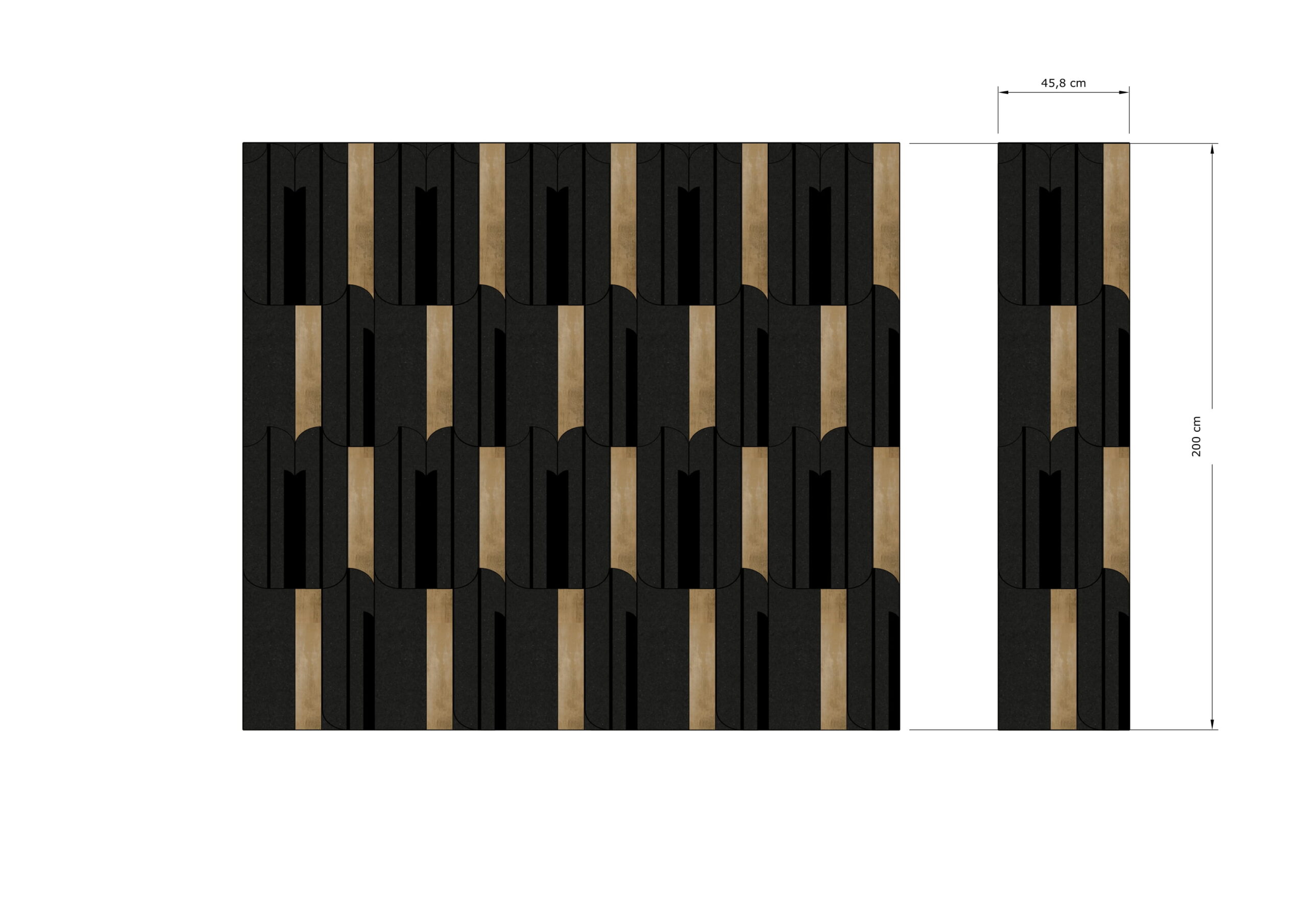

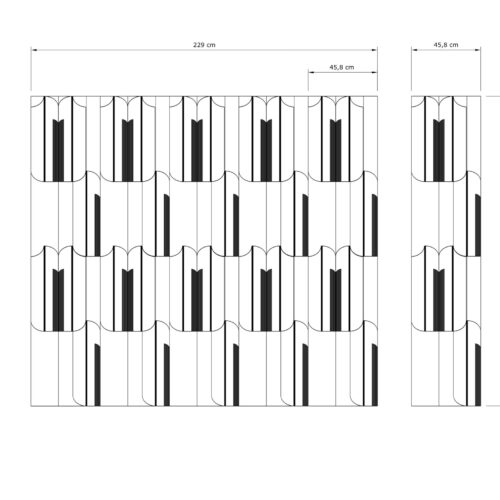

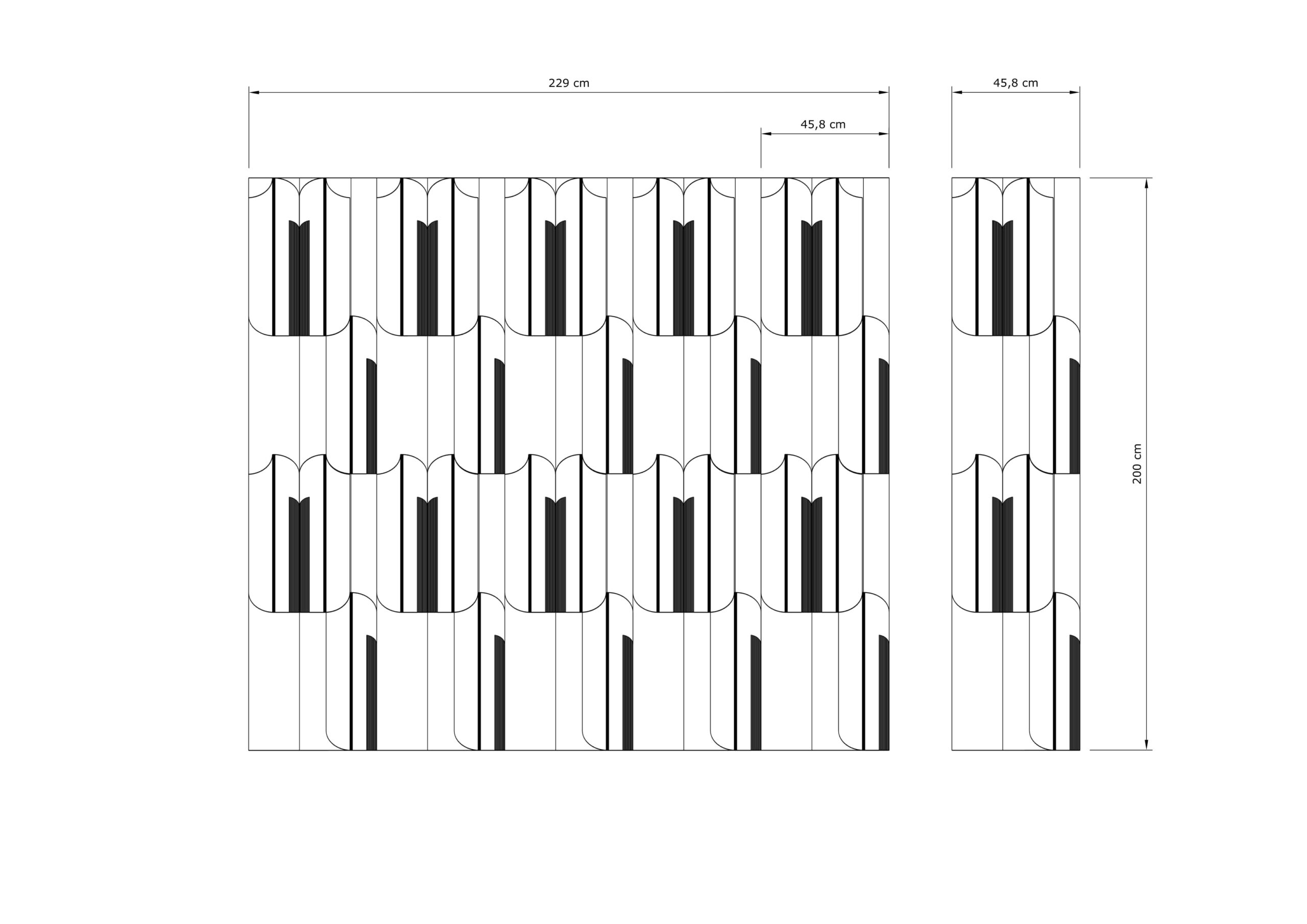

Dimensions
Height: 2000 mm
Thickness: 23 mm
Weight:
Width: 458 mm
Area: 0,92 m²
Dimensional tolerance in accordance with EN 622-5:2009 standard ±1 mm depending on the batch.
Material specification
Materials used

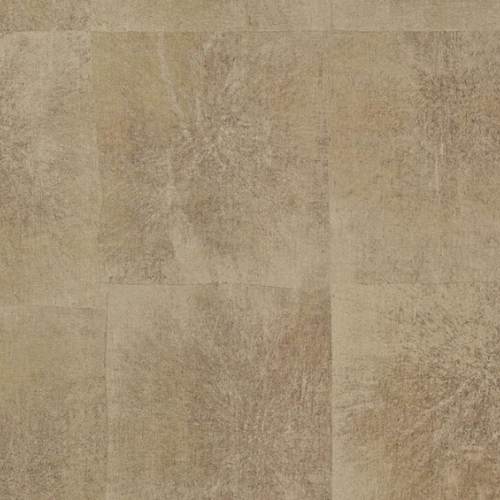

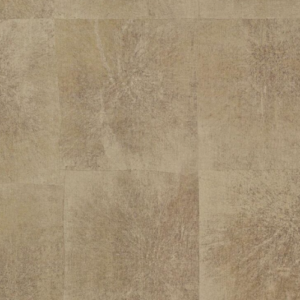

Valchromat board coloured through covered with three layers of satin varnish, solid wood board, Sibuglas, leaf metal - gold
Product name
Wave
Sturdiness
Balancing backside material prevents deformation, ensuring panel sturdiness
Durability
30% harder and more resistant to mechanical damage than traditional panels
Our panels are environmentally friendly
Owing to the use of natural materials and reduced quantity of harmful chemicals, they can be safely used within the reach of children.
Installation guide
1. Determining the fixing line
- Using a cross line laser or spirit level, determine the horizontal fixing line 300 mm above the floor level (maintaining a compensation gap of 20 mm).
- Place the batten against the laser line – the perpendicular edge and elongated mounting holes (“bean holes”) enable accurate fitting to the level.
2. Preparing the batten for fitting
- Cut the excess batten length to size, in order to fit it to the wall end.
3. Fixing the batten to the wall
- Place the batten against the wall and draw points for Ø7 mounting holes. Apply Ø6/80 mm wall plugs (from 4 to 6 pcs) in the marked points.
- Elongated mounting holes (“bean holes”) enable adjustment of the batten in relation to the fixing line.
- If the wall is uneven, the fixing points should correspond to the points in which the batten contacts the wall – do not bend the batten.
4. Securing and completing the installation
- The process should be repeated for subsequent panels, attention being paid to any possibly uneven walls that may require additional fitting adjustments.
Due to available adjustment options and accurate fitting of the batten to the wall, installation is smooth and ensures the stability of the entire structure
